   110cc 4-stroke Whoel Engine with Gear and Reverse for ATV110-CD-5 (Starter on Top)
   SKU: PART01027
   ID#: 2621

Email This Page Email This Page Print This Page Print This Page

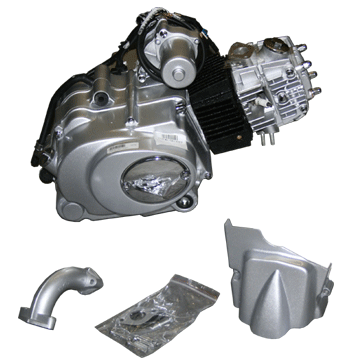

110cc 4-stroke Whoel Engine with Gear and Reverse for ATV110-CD-5 (Starter on Top)
PART NUMBER:    PART01027
AVAILABILITY:     OUT OF STOCK / BACK ORDER
SALE PRICE:    $279.00
SHIPPING & HANDLING:    $50.00
QUANTITY:     For large quantity purchase discount, please contact us for price quote.
 For multiple parts orders, shipping and handliing will be adjusted to a reasonably lower amount!


Features
Photo Gallery
Related Items
                Features
  • 110cc 4-stroke Whoel Engine with Gear and Reverse for ATV110-CD-5 (Starter on Top)
  • Drive Sprocket Pitch 428 H x 14T, PART07147
  • Engine Type: Single Cylinder, 4-Stroke, 2-Valve, Air Cooled
  • Horsepower(KW/Rpm): 5.0/8000
  • Max. Torque(N?m/Rpm): 6.9/6500
  • Min. Fuel Consumption(g/Kw.h): 367
  • Bore*Stroke: 52.4mmx49.5mm
  • Displacement(cc): 107
  • Compression ratio: 9.0:1
  • Ignition: CDI
  • Lubrication: Pressure/splash
  • Starter:Electric Starter
  • Transmission:Semi Automatic (3 forward,1 reverse)
  • Carburetor Model: PZ19
  • Oil capacity(ml):900
