Dirt Bikes

   Hensim 150cc Dirt Bike
   SKU: FH150ccDB-1
   ID#: 1332
       CARB Approved
Email This Page Email This Page Print This Page Print This Page

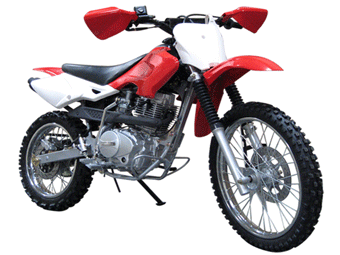

Hensim 150cc Dirt Bike
PART NUMBER:    FH150ccDB-1
AVAILABILITY:     DISCONTINUED
Features
Photo Gallery
Detailed Specification
Related Items

                Features
  • Hensim 150cc Dirt Bike
Back to Top
                Photo Gallery
Back to Top
                Detailed Specification
  • ENGINE PISTON DISPLACEMENT: 149CC
  • ENGINE MODEL: 156FMB
  • ENGINE TYPE: 4-strokes, air-cooled
  • CYLINDER ARRANGEMENT : Single cylinder
  • COMPRESION RATIO: 9.2:1
  • BORE x STROKE (MM): 56.5 x 49.5
  • MAX POWER (KW/RPM): 8.5KW/8500R/MIN
  • MAX TORQUE (N.M/RPM) : 8.5N.m/7000R/MIN
  • IGNITION: CDI
  • LUBRICATION: Pressure splash
  • BATTERY: N/A
  • STARTING: Kick Start
  • FUEL TYPE: Unleaded Gasoline 89 Octane
  • FUEL TANK CAPACITY: (US GALLONS) 1.50 Gallons
  • ENGINE OIL TYPE: High grade synthetic oil
  • ENGINE OIL CAPACITY (L): 1.10L
  • DRIVE TRAIN CLUTCH/GEARBOX: Manual/5-speed
  • FINAL DRIVE: Chain
  • TRANSMISSION FLUIDS: N/A
  • REVERSE GEAR (y/n): N/A
  • DRIVE SYSTEM: Rear Wheel
  • MAX.SPEED : 75 mph - 80 mph
  • F/R TIRE SIZE: Fr: 70x100-19 Rr: 90x100-17
  • F/R BRAKE: Fr: disk Rr: disc
  • BRAKE OPERATION MODE: Fr: hand Rr: hand/foot
  • FRONT SUSPENSION: Hydraulic Pressure Sleeve
  • REAR SUSPENSION: Swing Arm, Hydraulic Pressure Spring
  • OVERALL SIZE (LxWxH/in): 76" x 43 " x 42"
  • MIN.GROUND CLEARANCE : 7.1"
  • SEAT HEIGHT: 32"
  • MAX LOAD CAPACITY (lb): 330
  • GROSS WEIGHT: 220
  • PACKING SIZE (LxWxH/in) : 78" x 22" x 42"
