   Zida 4-stroke 50cc Chopper FB516
   SKU: FB516
   ID#: 596
       Free Shipping!
Email This Page Email This Page Print This Page Print This Page

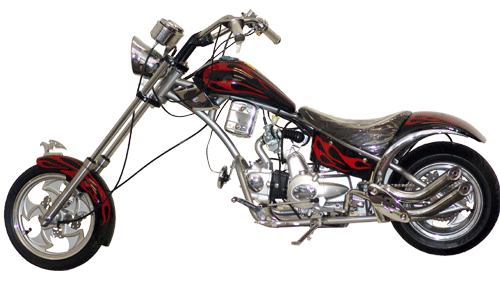

Zida 4-stroke 50cc Chopper FB516
PART NUMBER:    FB516
AVAILABILITY:     DISCONTINUED / PARTS AVAILABLE
SALE PRICE:    $0.00
SHIPPING & HANDLING:    $0.00
QUANTITY:     For large quantity purchase discount, please contact us for price quote.
AVAILABLE COLORS:
COLOR CHOICE:    First  Second


Detailed Specification
Related Items
                Detailed Specification
  • Dimension: 186 x 61 x 97 cm
  • Wheelbase: 146 cm
  • Net Weight: 80 kgs
  • Load: 250 lbs
  • Front Wheel: 70/70-12
  • Rear Wheel: 205/30-10
  • Ignition Style: CDI
  • Maximum Speed: > 50 km/h
  • Braking Distance: < 7m (30 km/h)
  • Brake: Front disk, rear drum
  • Slope Degree: > 15 degree
  • Cylinder borexstroke: 39 mm x 41.4 mm
  • Compression Ratio: 8.4:1
  • Maximum Output: 2.0Kw/7500 rpm
  • Maximum Torque: 2.6 nm/5000 rpm
  • Idle Speed: 1500 rpm+- 150 rpm
  • Displacement: 49 cc
  • Spark Plug: NHSP LD A7RTV
  • Spark Plug Gap: 0.6-0.7 mm
  • Tank Volume: 4 L
  • Ground Clearance: 110 mm
  • Air Valve Gap: Intake 0.05mm; Exhaust 0.05 mm
  • Transmission Ratio: 1st gear 3.272; 2nd gear 1.937; 3rd gear 1.350; 4th gear 1.043
  • Sprocket Transmission Ratio: 2.929
  • Primary Transmission Ratio: 3.722
