   Zida 49cc Ninjia 086
   SKU: FX086
   ID#: 172
       Free Shipping!
Email This Page Email This Page Print This Page Print This Page

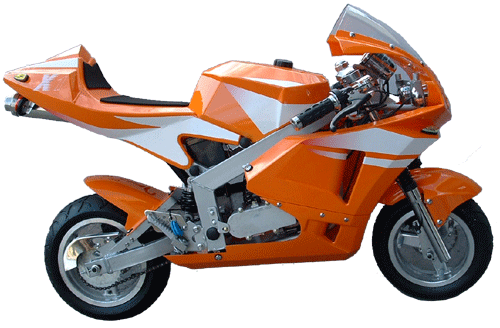

Zida 49cc Ninjia 086
PART NUMBER:    FX086
AVAILABILITY:     DISCONTINUED / PARTS AVAILABLE
SALE PRICE:    $0.00
SHIPPING & HANDLING:    $0.00
QUANTITY:     For large quantity purchase discount, please contact us for price quote.
AVAILABLE COLORS:
COLOR CHOICE:    First  Second


Photo Gallery
Detailed Specification
Related Items

                Photo Gallery
Back to Top
                Detailed Specification
  • Engine: Single cylinder, 2-stroke, 49cc, air cooling
  • Cylinder diameter X Stroke: 40 x 34 mm
  • Spark plug: BM6A
  • Carburetor: Bouble films
  • Idle speed: 2200 +/- 200 rpm
  • Output swirl direction: Counter-clockwise
  • Spark plug clearance: 0.6-0.7 mm
  • Ignition style: CDI
  • Start method: Electric start
  • Fuel: Leadless gasoline:HQ 2-stroke engine oil = 25:1
  • Displacement: 49 ml
  • rated power: 1.2 KW/6500 rpm
  • Clutch type: Centrifugal hoof friction
  • Fuel consumption: 100 km/2.2l
  • Gas tank volume: 1.7 liter
  • Max. speed: 45 km/hour
  • Net weight: 40 kg
  • Min. ground clearance: 140 mm
  • Weight capacity: 90 kg
  • Package size: 1370 x 450 x 880 mm
  • Product size: 1290 x 580 x 850 mm
  • Wheelbase: 890 mm
  • Wheel size: Front RR 90/65-8, Rear RE 120/50-9
  • Fluid oil: 2-cycle
  • Torque: 2.3 nm/4000 rpm
  • Wheel air pressure: 40 PSI
