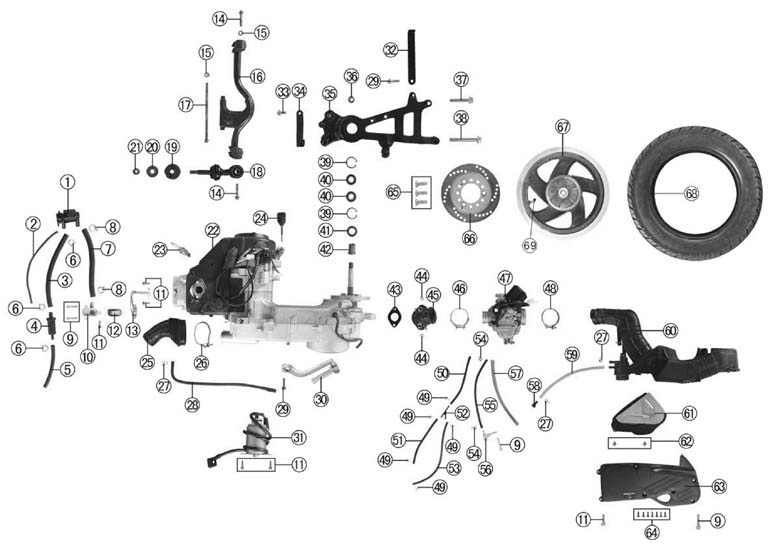

| Num. | Man. SKU | Item Name | Chinese | Qty | Details |
|---|
| 1 |
MC43-150-3-1 |
LOW-TENSION SWITCH | ¸ºÑ¹¿ª¹Ø |
1 |
FSI Part Links |
| 2 |
MC43-150-3-2 |
TUBE,BREATHER I | ͨÆø¹Ü¢ñ |
1 |
FSI Part Links |
| 3 |
MC43-150-3-3 |
TUBE,BREATHER II | ͨÆø¹Ü¢ò |
1 |
FSI Part Links |
| 4 |
MC43-150-3-4 |
AIR FILTER | ¿ÕÆø¹ýÂËÆ÷ |
1 |
FSI Part Links |
| 5 |
MC43-150-3-5 |
TUBE,BREATHER III | ͨÆø¹Ü¢ó |
1 |
FSI Part Links |
| 6 |
MC43-150-3-6 |
STRETCH HOLDING-DOWN CLIP | µ¯ÐÔ¿¨¹¿ |
3 |
FSI Part Links |
| 7 |
MC43-150-3-7 |
TUBE,BREATHER IV | ͨÆø¹Ü¢ô |
1 |
FSI Part Links |
| 8 |
MC43-150-3-8 |
FASTENER I | ¿¨¹¿¢ñ |
2 |
FSI Part Links |
| 9 |
MC43-150-3-9 |
BOLTS,M6*35 | ÂÝ˨M6*35 |
4 |
FSI Part Links |
| 10 |
MC43-150-3-10 |
COVER,unilateralism valve | µ¥Ïò·§¸Ç |
1 |
FSI Part Links |
| 11 |
MC43-150-3-11 |
BOLTS,M6*16 | ÂÝ˨M6*16 |
6 |
FSI Part Links |
| 12 |
MC43-150-3-12 |
unilateralism valve discreteness | µ¥Ïò·§×é¼þ |
1 |
FSI Part Links |
| 13 |
MC43-150-3-13 |
BREATHE TUBE COMP | ²¹ÆøÍä¹Ü×é¼þ |
1 |
FSI Part Links |
| 14 |
MC43-150-3-14 |
M10*55 BOLT,FLANGE | Áù½Ç·¨À¼ÃæÂÝ˨M10*55 |
2 |
FSI Part Links |
| 15 |
MC43-150-3-15 |
LOCK NUT,M10 | ×ÔËøÂÝĸM10 |
2 |
FSI Part Links |
| 16 |
MC43-150-3-16 |
SWING BRACKET,ENGINE | ¶¯Á¦µõ¼Ü |
1 |
FSI Part Links |
| 17 |
MC43-150-3-17 |
SHAFT,SWING BRACKET | ¶¯Á¦µõ¼ÜÖá |
1 |
FSI Part Links |
| 18 |
MC43-150-3-18 |
FIXING HOLDER,CUSHION | »º³åÌ×°²×°×ù |
1 |
FSI Part Links |
| 19 |
MC43-150-3-19 |
RUBBER,SWING BRACKET | ¶¯Á¦µõ¼Ü½º |
1 |
FSI Part Links |
| 20 |
MC43-150-3-20 |
WASHER | ƽµæ |
1 |
FSI Part Links |
| 21 |
MC43-150-3-21 |
LOCK NUT,M8 | ×ÔËøÂÝĸM8 |
1 |
FSI Part Links |
| 22 |
MC43-150-3-22 |
ENGINE | ·¢¶¯»ú×Ü³É |
1 |
FSI Part Links |
| 23 |
MC43-150-3-23 |
PLUG ,SPARK | »ð»¨Èû |
1 |
FSI Part Links |
| 24 |
MC43-150-3-24 |
GAUGE,OIL SEAL | »úÓÍ³ß |
1 |
FSI Part Links |
| 25 |
MC43-150-3-25 |
FILTER,ENGINE | ͨÆø¸ó |
1 |
FSI Part Links |
| 26 |
MC43-150-3-26 |
FASTENER II | ¿¨¹¿II |
1 |
FSI Part Links |
| 27 |
MC43-150-3-27 |
ELASTICITY FASTENER I | µ¯ÐÔ¿¨¹¿I |
1 |
FSI Part Links |
| 28 |
MC43-150-3-28 |
WASTE PIPE | ·¢¶¯»ú·ÏÆø¹Ü |
1 |
FSI Part Links |
| 29 |
MC43-150-3-29 |
M6*35 BOLT,FLANGE | Áù½Ç·¨À¼ÃæÂÝ˨M6*35 |
1 |
FSI Part Links |
| 30 |
MC43-150-3-30 |
STARTER,LEVER | Æô¶¯¸Ë×Ü³É |
1 |
FSI Part Links |
| 31 |
MC43-150-3-31 |
STARTER,ASSY | Æô¶¯µç»ú×Ü³É |
1 |
FSI Part Links |
| 32 |
MC43-150-3-32 |
BRACKET,REAR FENDER I | ºóµ²ÄàÖ§¼Ü¢ñ |
1 |
FSI Part Links |
| 33 |
MC43-150-3-33 |
BOLTS,M6*20 | ÂÝ˨M6*20 |
1 |
FSI Part Links |
| 34 |
MC43-150-3-34 |
BRACKET,REAR FENDER II | ºóµ²ÄàÖ§¼Ü¢ò |
1 |
FSI Part Links |
| 35 |
MC43-150-3-35 |
BRACKET,RR.SHOCK | ºó¼õ°²×°Ö§¼Ü |
1 |
FSI Part Links |
| 36 |
MC43-150-3-36 |
LOCK NUT,M16 | ×ÔËøÂÝĸM16 |
1 |
FSI Part Links |
| 37 |
MC43-150-3-37 |
M8*55 BOLT,FLANGE | Áù½Ç·¨À¼ÃæÂÝ˨M8*55 |
1 |
FSI Part Links |
| 38 |
MC43-150-3-38 |
M8*75 BOLT,FLANGE | Áù½Ç·¨À¼ÃæÂÝ˨M8*75 |
1 |
FSI Part Links |
| 39 |
MC43-150-3-39 |
CIRCLIP | ¿¨»É |
2 |
FSI Part Links |
| 40 |
MC43-150-3-40 |
BEARINGS | Öá³Ð |
2 |
FSI Part Links |
| 41 |
MC43-150-3-41 |
OIL SEAL | ÓÍ·â |
1 |
FSI Part Links |
| 42 |
MC43-150-3-42 |
BUSH | ³ÄÌ× |
1 |
FSI Part Links |
| 43 |
MC43-150-3-43 |
INSULATOR | ¸ôÈÈ°å |
1 |
FSI Part Links |
| 44 |
MC43-150-3-44 |
M6 NUT,FLANGE | Áù½Ç·¨À¼ÃæÂÝĸM6 |
2 |
FSI Part Links |
| 45 |
MC43-150-3-45 |
INTAKE MANIFOLD ASSY | ½øÆø¹Ü×Ü³É |
1 |
FSI Part Links |
| 46 |
MC43-150-3-46 |
FASTENER III | ¿¨¹¿III |
1 |
FSI Part Links |
| 47 |
MC43-150-3-47 |
CARBURETOR | »¯ÓÍÆ÷×Ü³É |
1 |
FSI Part Links |
| 48 |
MC43-150-3-48 |
FASTENER IV | ¿¨¹¿IV |
1 |
FSI Part Links |
| 49 |
MC43-150-3-49 |
ELASTICITY FASTENER II | µ¯ÐÔ¿¨¹¿ II |
5 |
FSI Part Links |
| 50 |
MC43-150-3-50 |
PIPE COMP.,In I | ½øÆø¹Ü¢ñ |
1 |
FSI Part Links |
| 51 |
MC43-150-3-51 |
PIPE COMP.,IN II | ½øÆø¹Ü¢ò |
1 |
FSI Part Links |
| 52 |
MC43-150-3-52 |
TRIPLE TUBE | Èýͨ¹Ü |
1 |
FSI Part Links |
| 53 |
MC43-150-3-53 |
PIPE COMP.,In III | ½øÆø¹Ü¢ó |
1 |
FSI Part Links |
| 54 |
MC43-150-3-54 |
ELASTICITY FASTENER III | µ¯ÐÔ¿¨¹¿ III |
2 |
FSI Part Links |
| 55 |
MC43-150-3-55 |
DRAIN TUBE | ·ÅÓÍ¹Ü |
1 |
FSI Part Links |
| 56 |
MC43-150-3-56 |
OIL COMP,OUT | ·ÅÓÍ¿××éºÏ |
1 |
FSI Part Links |
| 57 |
MC43-150-3-57 |
SPRING,DRAIN TUBE | ·ÅÓ͹ܵ¯»É |
1 |
FSI Part Links |
| 58 |
MC43-150-3-58 |
WASTE PIPE STOPPER,AIR FILTER | ¿ÕÂËÆ÷·ÏÆø¹ÜÈû |
1 |
FSI Part Links |
| 59 |
MC43-150-3-59 |
AIR FILTER,WASTER PIPE | ¿ÕÂËÆ÷·ÏÆø¹Ü |
1 |
FSI Part Links |
| 60 |
MC43-150-3-60 |
AIR CLEANER | ¿ÕÂËÆ÷×é¼þ |
1 |
FSI Part Links |
| 61 |
MC43-150-3-61 |
AIR FLITER CORE | ¿ÕÂËо |
1 |
FSI Part Links |
| 62 |
MC43-150-3-62 |
SCREWS,AIR FILTER CORE | ¿ÕÂËоÂݶ¤ |
2 |
FSI Part Links |
| 63 |
MC43-150-3-63 |
CAP,AIR FILTER | ¿ÕÂËÆ÷¸Ç |
1 |
FSI Part Links |
| 64 |
MC43-150-3-64 |
ST4.8*16 SCREW,TAPPING | ×Ô¹¥Âݶ¤ST4.8*16 |
7 |
FSI Part Links |
| 65 |
MC43-150-3-65 |
FIXING BOLTS,RR BRAKE DISC | ºóÖƶ¯Å̶̹¨ÂÝ˨ |
1 |
FSI Part Links |
| 66 |
MC43-150-3-66 |
REAR BRAKE DISC | ºóÖƶ¯ÅÌ |
1 |
FSI Part Links |
| 67 |
MC43-150-3-67 |
RIM .REAR.WHEEL | ºóÂÖéþ |
1 |
FSI Part Links |
| 68 |
MC43-150-3-68 |
REAR TYRE 4.00-12 | ºóÂÖÌ¥4.00-12 |
1 |
FSI Part Links |
| 69 |
MC43-150-3-69 |
AIR VALVE | ÆøÃÅ×ì |
1 |
FSI Part Links |
|
