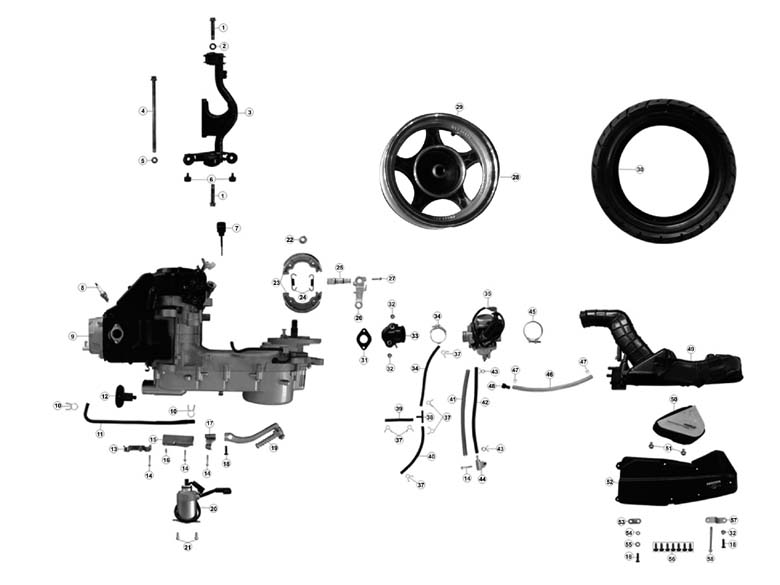

| Num. | Man. SKU | Item Name | Chinese | Qty | Details |
|---|
| 1 |
MC16-150-3-1 |
HEX FLANGE BULT M10*55 | Áù½Ç·¨À¼ÃæÂÝ˨M10*55 |
2 |
FSI Part Links |
| 2 |
MC16-150-3-2 |
BUSH | ³ÄÌ× |
1 |
FSI Part Links |
| 3 |
MC16-150-3-3 |
SWING BRACKET,ENGINE | ¶¯Á¦µõ¼Ü |
1 |
FSI Part Links |
| 4 |
MC16-150-3-4 |
SHAFT,SWING BRACKET | µõ¼ÜÖáM10*185 |
1 |
FSI Part Links |
| 5 |
MC16-150-3-5 |
LOCK NUT M10 | ×ÔËøÂÝĸM10 |
1 |
FSI Part Links |
| 6 |
MC16-150-3-6 |
RUBBER,SWING BRACKET | ¶¯Á¦µõ¼Ü½º |
2 |
FSI Part Links |
| 7 |
MC16-150-3-7 |
GAVGE,UIL SEAL | »úÓÍ³ß |
1 |
FSI Part Links |
| 8 |
MC16-150-3-8 |
PLUG,SPARK | »ð»¨Èû |
1 |
FSI Part Links |
| 9 |
MC16-150-3-9 |
ENGINE ASSY | ·¢¶¯»ú×Ü³É |
1 |
FSI Part Links |
| 10 |
MC16-150-3-10 |
FASTENER,WASTE PIPE,GEAR BOX | ·ÏÆø¹Ü¿¨¹¿ |
2 |
FSI Part Links |
| 11 |
MC16-150-3-11 |
WASTE PIPE,GRAR BOX | ·ÏÆø¹Ü |
1 |
FSI Part Links |
| 12 |
MC16-150-3-12 |
FILTER,CUI.BOX | ͨÆø¸ó |
1 |
FSI Part Links |
| 13 |
MC16-150-3-13 |
CLIP,DRAIN TUBE | ·ÅÓ͹ܼÐ×Ó |
1 |
FSI Part Links |
| 14 |
MC16-150-3-14 |
BULT M6*40 | ÂÝ˨M6*40 |
4 |
FSI Part Links |
| 15 |
MC16-150-3-15 |
MAIN STAND DEAD BLOCK | Ö÷³Å»º³å°å |
1 |
FSI Part Links |
| 16 |
MC16-150-3-16 |
BULT,M6*12 | ÂÝ˨M6*12 |
1 |
FSI Part Links |
| 17 |
MC16-150-3-17 |
CLIP,CABLE,RR.BRAKE | ºóÖƶ¯ÀË÷¿¨×Ó |
1 |
FSI Part Links |
| 18 |
MC16-150-3-18 |
HEX FLANGE BULT M6*22 | Áù½Ç·¨À¼ÃæÂÝ˨M6*22 |
3 |
FSI Part Links |
| 19 |
MC16-150-3-19 |
LEVER,ASSY,KICK STARTER | Æô¶¯¸Ë×Ü³É |
1 |
FSI Part Links |
| 20 |
MC16-150-3-20 |
STARTER | Æô¶¯µç»ú×Ü³É |
1 |
FSI Part Links |
| 21 |
MC16-150-3-21 |
BULT M6*16 | ÂÝ˨M6*16 |
2 |
FSI Part Links |
| 22 |
MC16-150-3-22 |
LOCK NUT M16 | ×ÔËøÂÝĸM16 |
1 |
FSI Part Links |
| 23 |
MC16-150-3-23 |
BRAKE BLOCK ASSY | ºóÖƶ¯ÌãƬ |
2 |
FSI Part Links |
| 24 |
MC16-150-3-24 |
SPRING | ºóÖƶ¯Ìã¿éÀ»É |
2 |
FSI Part Links |
| 25 |
MC16-150-3-25 |
CAMSHAFT,RR.BRAKE | ºóÖƶ¯Í¹ÂÖÖá |
1 |
FSI Part Links |
| 26 |
MC16-150-3-26 |
SWING ARM,RR.BRAKE | ºóÖƶ¯Ò¡±Û |
1 |
FSI Part Links |
| 27 |
MC16-150-3-27 |
BULT M6*32 | ÂÝ˨M6*32 |
1 |
FSI Part Links |
| 28 |
MC16-150-3-28 |
REAR RIM | ºóÂÖéþ |
1 |
FSI Part Links |
| 29 |
MC16-150-3-29 |
AIR VALVE | ÆøÃÅ×ì |
1 |
FSI Part Links |
| 30 |
MC16-150-3-30 |
RAER TYPE 120/70-12 | ºóÂÖÌ¥120/70-12 |
1 |
FSI Part Links |
| 31 |
MC16-150-3-31 |
INSULATOR | ¸ôÈÈ°å |
1 |
FSI Part Links |
| 32 |
MC16-150-3-32 |
HEX FLANGE NUT M6 | Áù½Ç·¨À¼ÃæÂÝĸM6 |
3 |
FSI Part Links |
| 33 |
MC16-150-3-33 |
ASSY,PIPE IN | ½øÆø¹Ü×Ü³É |
1 |
FSI Part Links |
| 34 |
MC16-150-3-34 |
FASTENER I | ¿¨¹¿¢ñ |
1 |
FSI Part Links |
| 35 |
MC16-150-3-35 |
CARBURETOY ASSY | »¯ÓÍÆ÷×Ü³É |
1 |
FSI Part Links |
| 36 |
MC16-150-3-36 |
PIPE IN I | ¸ºÑ¹¹Ü¢ñ |
1 |
FSI Part Links |
| 37 |
MC16-150-3-37 |
FASTENER,PIPE IN | ¸ºÑ¹¹Ü¿¨¹¿ |
6 |
FSI Part Links |
| 38 |
MC16-150-3-38 |
TRIPLE TUBE | Èýͨ¹Ü |
1 |
FSI Part Links |
| 39 |
MC16-150-3-39 |
PIPE IN II | ¸ºÑ¹¹Ü¢ò |
1 |
FSI Part Links |
| 40 |
MC16-150-3-40 |
PIPE IN III | ¸ºÑ¹¹Ü¢ó |
1 |
FSI Part Links |
| 41 |
MC16-150-3-41 |
SPRING,DRAIN TUBE | ·ÅÓ͹ܵ¯»É |
1 |
FSI Part Links |
| 42 |
MC16-150-3-42 |
DRAIN TUBE | ·ÅÓÍ¹Ü |
1 |
FSI Part Links |
| 43 |
MC16-150-3-43 |
FASTENER,DRAIN TUBE | ·ÅÓ͹ܿ¨¹¿ |
2 |
FSI Part Links |
| 44 |
MC16-150-3-44 |
DRAIN TUBE COMP | ·ÅÓÍ¿××é¼þ |
1 |
FSI Part Links |
| 45 |
MC16-150-3-45 |
FASTENER II | ¿¨¹¿¢ò |
1 |
FSI Part Links |
| 46 |
MC16-150-3-46 |
WASTE PIPE,AIRCLEANER | ¿ÕÂËÆ÷·ÏÆø¹Ü |
1 |
FSI Part Links |
| 47 |
MC16-150-3-47 |
FASTENER,WASTE PIPE,AIR CLEANER | ¿ÕÂËÆ÷·ÏÆø¹Ü¿¨¹¿ |
2 |
FSI Part Links |
| 48 |
MC16-150-3-48 |
PLUG,WASTE PIPE,AIR CLEANER | ¿ÕÂËÆ÷·ÏÆø¹ÜÈû |
1 |
FSI Part Links |
| 49 |
MC16-150-3-49 |
AIR CLEANER | ¿ÕÂËÆ÷×é¼þ |
1 |
FSI Part Links |
| 50 |
MC16-150-3-50 |
AIR CLEANER CORE | ¿ÕÂËо |
1 |
FSI Part Links |
| 51 |
MC16-150-3-51 |
BULT,AIR CLEANER CORE | ¿ÕÂËо¹Ì¶¨Âݶ¤ |
2 |
FSI Part Links |
| 52 |
MC16-150-3-52 |
BRACKET,COVER,AIR CLEANER | ¿ÕÂËÆ÷¸Ç |
1 |
FSI Part Links |
| 53 |
MC16-150-3-53 |
AIR CLEANER I | ¿ÕÂËÆ÷¹Ì¶¨Ö§¼Ü¢ñ |
1 |
FSI Part Links |
| 54 |
MC16-150-3-54 |
NUT M6 | ÂÝĸM6 |
1 |
FSI Part Links |
| 55 |
MC16-150-3-55 |
GASKET F6 | ƽµæ6 |
1 |
FSI Part Links |
| 56 |
MC16-150-3-56 |
SCREW,TAPPING,ST4.8*16 | ×Ô¹¥Âݶ¤ST4.8*16 |
7 |
FSI Part Links |
| 57 |
MC16-150-3-57 |
BRACKET,AIR CLEANER II | ¿ÕÂËÆ÷¹Ì¶¨Ö§¼Ü¢ò |
1 |
FSI Part Links |
| 58 |
MC16-150-3-58 |
BULT M6*65 | ÂÝ˨M6*65 |
1 |
FSI Part Links |
|
