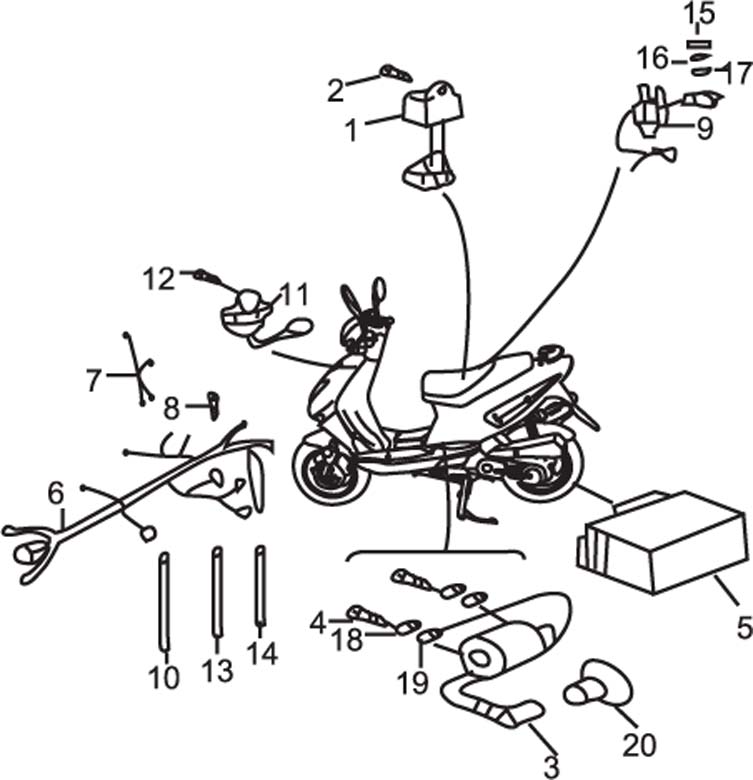

ELECTRICAL EQUIPMENT I


Num.Man. SKUItem NameQtyDetails
1 504-220100 C.D.I. UNIT COMP.1 FSI Part Links
2 GB/T16674-1996 SCREW W/WASHER M6X161 FSI Part Links
3 504-220200 IGNITION COIL ASSY.1 FSI Part Links
4 GB/T5782-2000 SCREW M5X201 FSI Part Links
5 504-220300 BATTERY ASSY.1 FSI Part Links
6 504-220400 WIRE HARNESS ASSY.1 FSI Part Links
7 504-220500 WIRE HARNESS2 FSI Part Links
8 504-220600 FUSE1 FSI Part Links
9 504-220700 STARTER RELAY COMP.1 FSI Part Links
10 504-220800 BAND 250MM2 FSI Part Links
11 504-220900 RESISTOR COMP.1 FSI Part Links
12 GB/T5789-2000 BOLT M6X121 FSI Part Links
13 504-221000 BAND 200MM3 FSI Part Links
14 504-221100 BAND 150MM5 FSI Part Links
15 GB/T6170-2000 NUT M61 FSI Part Links
16 GB/T97.1-1985 WASHER¦Õ61 FSI Part Links
17 GB/T97.1-1985 WASHER¦Õ61 FSI Part Links
18 GB/T97.1-1985 WASHER¦Õ51 FSI Part Links
19 GB/T97.1-1985 WASHER¦Õ51 FSI Part Links
