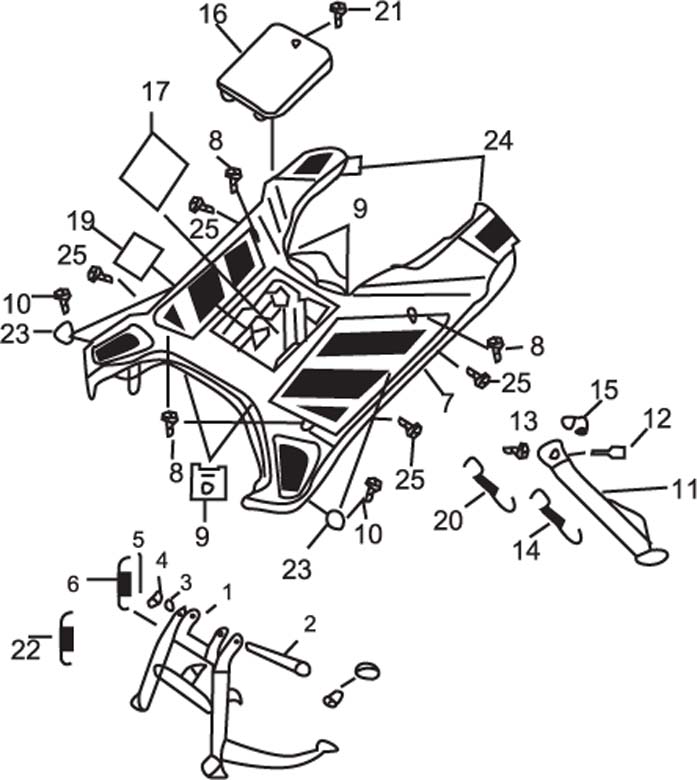

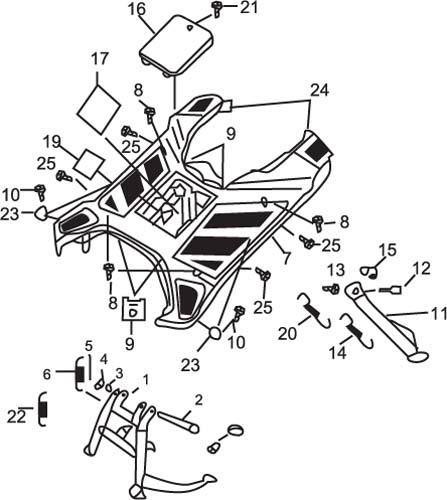

FOOTREST/STAND


Num.Man. SKUItem NameQtyDetails
1 504-16A0100 MAIN STAND COMP.1 FSI Part Links
2 504-16A0200 PIN1 FSI Part Links
3 504-16A0300 O-RING¦Õ10X1.81 FSI Part Links
4 GB/T97.1-1985 PLATE WASHER¦Õ101 FSI Part Links
5 504-16A0400 SPLIT PIN1 FSI Part Links
6 504-16A0500 TENSION SPRING1 FSI Part Links
7 504-16A0600 FLOOR, BLACK1 FSI Part Links
8 GB/T16674-1996 BOLT M6X144 FSI Part Links
9 ZBT31004-87 SPRING NUT 4MM4 FSI Part Links
10 GB/T845-1985 TAPPING SCREWST 4.2X164 FSI Part Links
11 504-16A0700 SIDE STAND COMP.1 FSI Part Links
12 504-16A0800 BOLT, SIDE STAND MOUNTING1 FSI Part Links
13 GB/T6185.1-2000 U NUT M81 FSI Part Links
14 504-16A0900 TENSION SPRING1 FSI Part Links
15 504-16A1000 HOOK1 FSI Part Links
16 504-16A1100 BATTERY COVER1 FSI Part Links
17 504-16A1200 BATTERY DAMPER I1 FSI Part Links
18 504-16A1300 CUSHION, MID STAND1 FSI Part Links
19 504-16A1400 BATTERY DAMPER I1 FSI Part Links
20 504-16A1500 TENSION SPRING1 FSI Part Links
21 GB/T845-1985 TAPPINGSCREW ST4.8X161 FSI Part Links
22 504-16A1600 TENSION SPRING1 FSI Part Links
23 GB/T97.1-1985 WASHER¦Õ54 FSI Part Links
24 ZBT31004-87 NUT M52 FSI Part Links
25 GB/T16674-1996 BOLT M6X124 FSI Part Links
