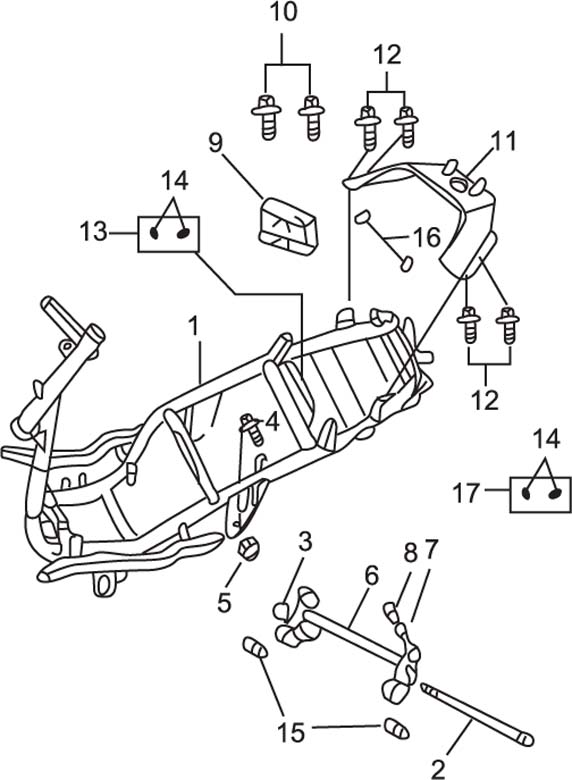

FRAME BODY
车架


Num.Man. SKUItem NameChineseQtyDetails
1 504-110100 FRAME COMP.车架焊接组件 1 FSI Part Links
2 504-110200 E/G MOUNTING BOLT, 1发动机固定轴 1 FSI Part Links
3 GB/T6187.1-2000 FLANGE U NUT M12X1.25螺母M12X1.25 1 FSI Part Links
4 504-110300 E/G MOUNTING BOLT, 2吊架固定螺栓 2 FSI Part Links
5 GB/T6177.1-2000 FLANGE U NUT M10X1.25螺母 M10X1.25 2 FSI Part Links
6 504-110400 E/G BRKT. COMP.动力吊架焊接组件 1 FSI Part Links
7 504-110500 DAMPER防震垫 2 FSI Part Links
8 504-110600 SPRING缓冲弹簧 2 FSI Part Links
9 504-110700 SEAT CATCH COMP.座垫锁座组件 1 FSI Part Links
10 GB/T16674-1996 FLANGE BOLT M 6X25螺栓M6X25 2 FSI Part Links
11 504-110800 CARRIER BRACKET后货架支座 1 FSI Part Links
12 GB/T16674-1996 FLANGE BOLT M6X12螺栓M6X12 4 FSI Part Links
13 504-110900 FRAME BODY NO. PLATE车架标牌 1 FSI Part Links
14 GB12615-1990 RIVET3.2X7抽芯铆钉3.2X7 4 FSI Part Links
15 504-111000 BUFFER, ENGINE BRACKET吊架缓冲衬套 2 FSI Part Links
16 504-111100 SEAT CABLE座垫钢索 1 FSI Part Links
17 504-111200 ANTI-TAMPERING PLATE防改装铭牌 1 FSI Part Links
