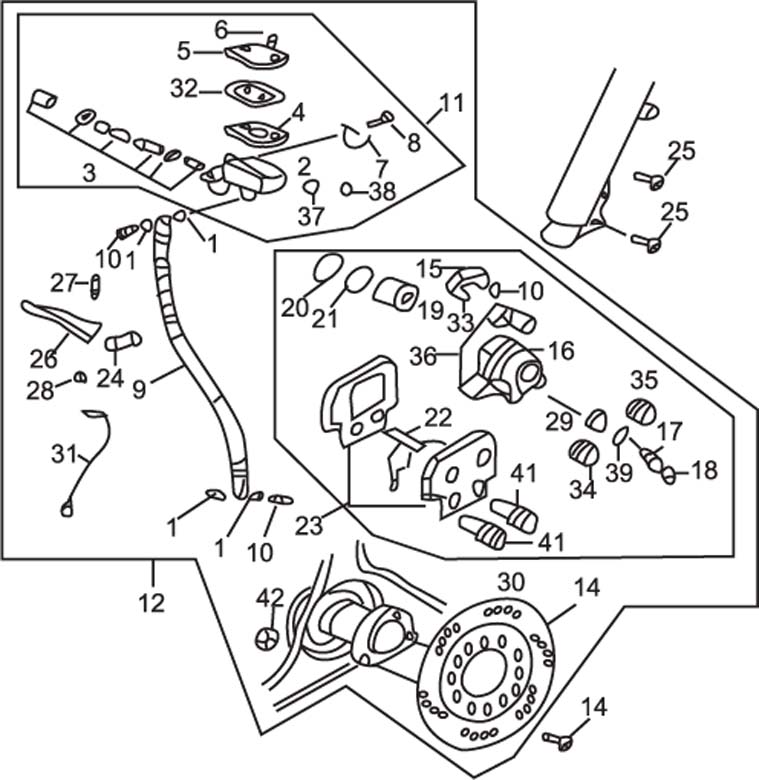

FRONT DISK BRAKE
ǰҺɲ


Num.Man. SKUItem NameChineseQtyDetails
1 GB/T97.1-1985 PLATE WASHER¦Õ10µæȦ¦Õ10 4 FSI Part Links
2 504-050100 MASTER CYLINDER BODYÓͱÃÌå 1 FSI Part Links
3 504-050200 PISTON ASSY.ÖùÈû×é¼þ 1 FSI Part Links
4 504-050300 RESERVOIR DIAPHRAGMÓͱ­µæ 1 FSI Part Links
5 504-050400 RESERVOIR CAPÓͱ­¸Ç 1 FSI Part Links
6 GB/T16674-1996 FLAT HEAD SCREW M4X10Âݶ¤M4X10 2 FSI Part Links
7 504-050500 MASTER CYLINDER BRACKETÊÖ±ú×ù¹Ì¶¨¸Ç 1 FSI Part Links
8 GB/T16674-1996 BOLT M6X23ÂÝ˨M6X23 1 FSI Part Links
9 504-050600 FR. BRAKE HOSEÖƶ¯Èí¹Ü×Ü³É 1 FSI Part Links
10 504-050700 UNION BOLTÁª½áÂÝ˨ 2 FSI Part Links
11 504-050800 CYLINDER COMP.ÓͱÃÌå×é¼þ(ºÚ) 1 FSI Part Links
12 504-050900 DISC BRAKE ASSY., FR.Һɲ×Ü³É 1 FSI Part Links
13 504-051000 BRAKE DISCÇ°Öƶ¯ÅÌ190(Òø) 1 FSI Part Links
14 GB/T70.1-2000 BOLT M6X30Ç°Öƶ¯ÅÌ°²×°ÂÝ˨M6X30 3 FSI Part Links
15 GB/T6177.1-2000 FLANGE NUT M10X1.25ÂÝĸM10X1.25 3 FSI Part Links
16 504-051100 CALIPER BODYÖƶ¯¸× 1 FSI Part Links
17 504-051200 BREED SCREW·ÅÆø×ì 1 FSI Part Links
18 504-051300 BREED SCREW CAP·ÅÆø×ì·À³¾ÕÖ 1 FSI Part Links
19 504-051400 OIL PLUGÓÍÈû 1 FSI Part Links
20 504-051500 SEAL, OIL PLUGÓÍÈûÃÜ·âȦ 1 FSI Part Links
21 504-051600 COVER, DUST SEALÓÍÈû·À³¾ÕÖ 1 FSI Part Links
22 504-051700 PAD SUPPORT,1µ¯»ÉƬ 1 FSI Part Links
23 504-051800 BRAKE PAD KIT IĦ²ÁƬ×é¼þI 1 FSI Part Links
24 504-051900 BRAKE PAD KIT IIĦ²ÁƬ×é¼þII 1 FSI Part Links
25 GB/T16674-1996 FLANGE BOLT M 8X32·¨À¼ÂÝ˨M8X32 2 FSI Part Links
26 504-052000 DISC BRAKE LEVERҺɲÊÖ±ú 1 FSI Part Links
27 GB/T16674-1996 BOLT M 6X30ÂÝ˨M 6X30 1 FSI Part Links
28 GB/T6177.1-2000 NUT M6ÂÝĸM6 1 FSI Part Links
29 GB/T93-1987 WASHER¦Õ6µ¯µæ¦Õ6 1 FSI Part Links
30 504-052100 CALIPER ASSY. (GOLDEN)Öƶ¯¸××é¼þ(ºì) 1 FSI Part Links
31 504-052200 STOP SWITCH ASSY.ǰɲÖƶ¯¿ª¹Ø 1 FSI Part Links
32 504-052300 WASHER, CYLINDERÓͱÃÌå³Äµæ 1 FSI Part Links
33 504-052400 GUIDE POLEµ¼Öù 2 FSI Part Links
34 504-052500 DUST COVER I, GUIDE POLEµ¼Öù·À³¾ÕÖI 1 FSI Part Links
35 504-052600 DUST COVER II, GUIDE POLEµ¼Öù·À³¾ÕÖII 1 FSI Part Links
36 504-052700 CONNECTING BRACKETÁª°å 1 FSI Part Links
37 504-052800 MIRROR ASSY., OIL INSPECTIONÓ;µ×é¼þ 1 FSI Part Links
38 504-052900 SEAL, MIRRORÓ;µÃÜ·âµæ 1 FSI Part Links
39 504-053000 COLLARÌ×Ȧ 1 FSI Part Links
