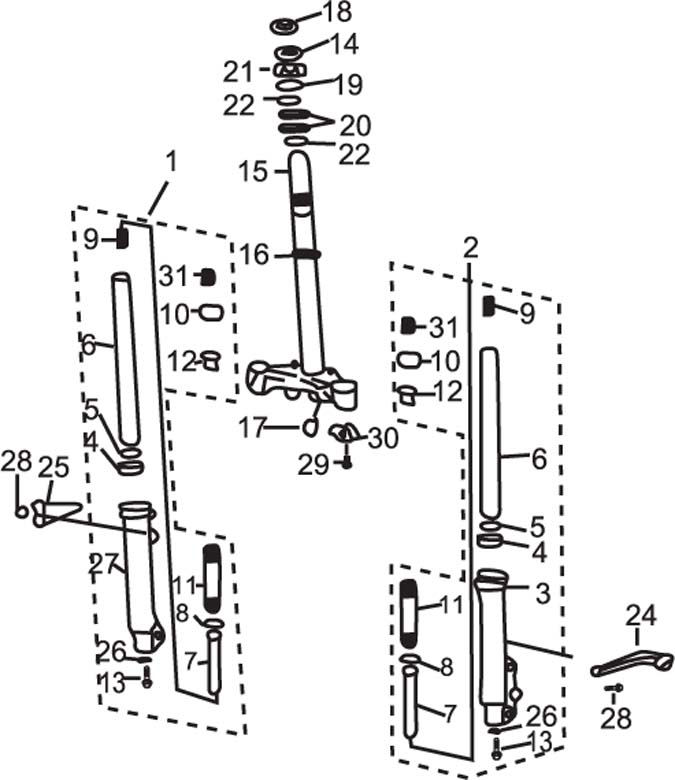

FRONT FORK
前叉


Num.Man. SKUItem NameChineseQtyDetails
1 504-030100 R.H. FR. FORK ASSY.前右减震器组件 1 FSI Part Links
2 504-030200 L.H. FR. FORK ASSY.前左减震器组件 1 FSI Part Links
3 504-030300 OUTER TUBE, 1左外管 1 FSI Part Links
4 504-030400 OIL SEAL油封组件 2 FSI Part Links
5 504-030500 CLIP孔用钢丝挡圈 2 FSI Part Links
6 504-030600 INNER TUBE COMP. , 1内管组件 2 FSI Part Links
7 504-030700 FR. FORK PISTON活塞杆 2 FSI Part Links
8 504-030800 PISTON RING活塞环 2 FSI Part Links
9 504-030900 SPRING减震弹簧 2 FSI Part Links
10 504-031000 O-RINGO型圈 2 FSI Part Links
11 504-031100 FR. FORK SPRING缓冲弹簧 2 FSI Part Links
12 504-031200 CAP BOLT专用螺栓 2 FSI Part Links
13 GB/T5780-2000 BOLT M6X20螺栓M6X20 2 FSI Part Links
14 504-031300 NUT开槽螺母 1 FSI Part Links
15 504-031400 UNDER BRKT. COMP.下联板焊接组件 1 FSI Part Links
16 504-031500 BALL RACE, 4下轴承下钢碗 1 FSI Part Links
17 GB/T16674-1996 FLANGE BOLT M10X1.25X30螺栓M10X1.25X30 2 FSI Part Links
18 504-031600 NUT压紧螺母 1 FSI Part Links
19 504-031700 BALL RACE, 1上轴承上钢碗 1 FSI Part Links
20 504-031800 BALL RACE, 2下轴承上钢碗 2 FSI Part Links
21 504-031900 DUST COVER防尘罩 1 FSI Part Links
22 504-032000 STEEL BALLφ5钢球φ5 42 FSI Part Links
23 504-032100 FRONT FORK ASSY.前叉总成 1 FSI Part Links
24 504-032200 BRAKE HOSE HOLDER, 1液刹线夹1 1 FSI Part Links
25 504-032300 CABLE HOLDER里程表线线夹 1 FSI Part Links
26 GB/T97.1-1985 GASKET垫圈 2 FSI Part Links
27 504-032400 OUTER TUBE, 2右外管 1 FSI Part Links
28 GB/T16674-1996 SCREWM6X16螺栓M6X16 2 FSI Part Links
29 GB/T16674-1996 FLANGE BOLT M6X12螺栓M6X12 1 FSI Part Links
30 504-032500 BRAKE HOSE HOLDER, 2液刹线夹2 1 FSI Part Links
31 504-032600 COVER, ANTI-DUST防尘圈 2 FSI Part Links
