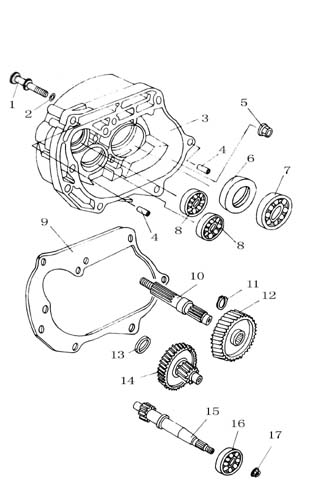

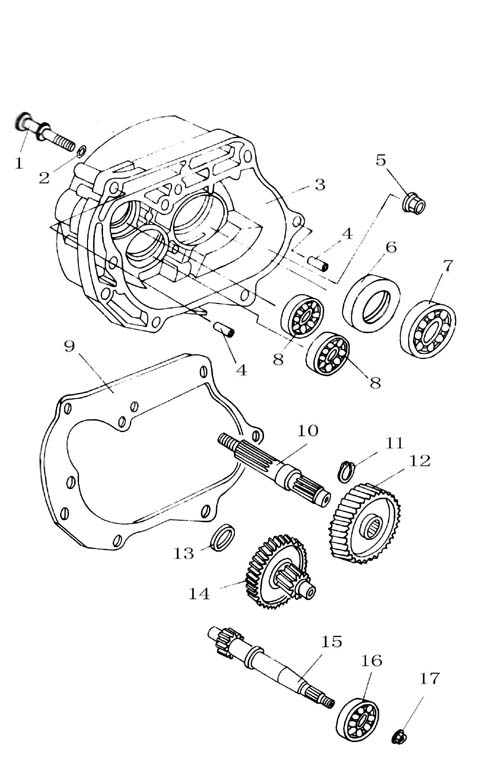

GEAR-BOX COVER- GEAR ASSEMBLY


Num.Man. SKUItem NameChineseQtyDetails
1 152QMI-025-000 PIN, BRAKE 0 FSI Part Links
2 152QMI-024-000 O-RING 7.5×1.5 0 FSI Part Links
3 139QMB-149-000 COVER GEAR-BOX 0 FSI Part Links
4 139QMB-150-000 PIN DOWL 10×20 0 FSI Part Links
5 139QMB-151-000 NUT M8 0 FSI Part Links
6 152QMI-006-000 OIL SEAL, OUT SHAFT 0 FSI Part Links
7 139QMB-152-000 BEARING 6004-2RS 0 FSI Part Links
8 139QMB-153-000 BEARING 6201 0 FSI Part Links
9 139QMB-154-000 GASKETGEAR-BOX 0 FSI Part Links
10 139QMB-155-000 SHAFTOUTER 0 FSI Part Links
11 139QMB-156-000 CLIP, SHAFT 20 0 FSI Part Links
12 139QMB-157-000 GEARFINAL STAGE 0 FSI Part Links
13 139QMB-158-000 WASHER 0 FSI Part Links
14 139QMB-159-000 REDUCTION GEAR COMP 0 FSI Part Links
15 139QMB-160-000 SHAFT, INLET 0 FSI Part Links
16 139QMB-161-000 BEARING 6303X3-2(6203A) 0 FSI Part Links
17 139QMB-162-000 FLANGE BOLT LOCK 0 FSI Part Links
