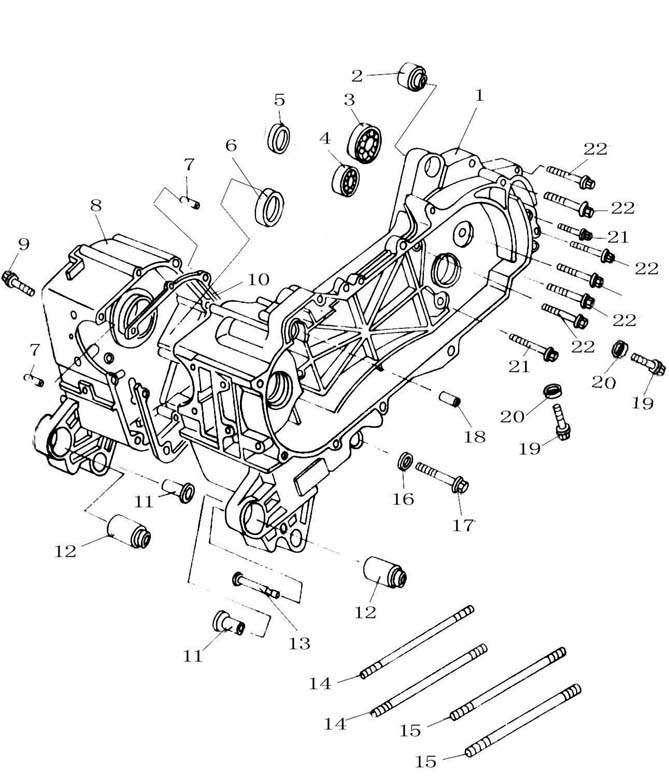

CRANKCASE ASSEMBLY

Num.	Man. SKU	Item Name	Details
1	139QMB-065-000	L CRANKCASE COMP	FSI Part Links
2	152QMI-004-000	RR BUSH	FSI Part Links
3	139QMB-066-000	BEARING 6203	FSI Part Links
4	139QMB-067-000	BEARING 6201	FSI Part Links
5	139QMB-068-000	OIL SEAL OUTER SHAFT 17×30	FSI Part Links
6	152QMI-009-000	OIL SEAL CRANKSHAFT 19.8×3	FSI Part Links
7	139QMB-069-000	PIN DOWL 8×14	FSI Part Links
8	139QMB-070-000	R CRANKCASE COMP	FSI Part Links
9	139QMB-071-000	BOLT M6×45	FSI Part Links
10	139QMB-072-000	GASKET CRANKCASE	FSI Part Links
11	139QMB-073-000	BUSH MAIN STAND AXIS	FSI Part Links
12	152QMI-012-000	BUSH FR RUBBER	FSI Part Links
13	139QMB-074-000	AXIS MAINSTAND SPRING	FSI Part Links
14	139QMB-075-000	STUD LONG	FSI Part Links
15	139QMB-076-000	STUD SHORT	FSI Part Links
16	139QMB-077-000	WASHER 12	FSI Part Links
17	139QMB-078-000	DRAIN BOLT M12×12	FSI Part Links
18	139QMB-079-000	BUSH START CLUTCH	FSI Part Links
19	139QMB-080-000	BOLT AM8×12	FSI Part Links
20	152QMI-044-000	WASHER	FSI Part Links
21	139QMB-081-000	BOLT M8×35	FSI Part Links
22	139QMB-082-000	BOLT M8×40	FSI Part Links
