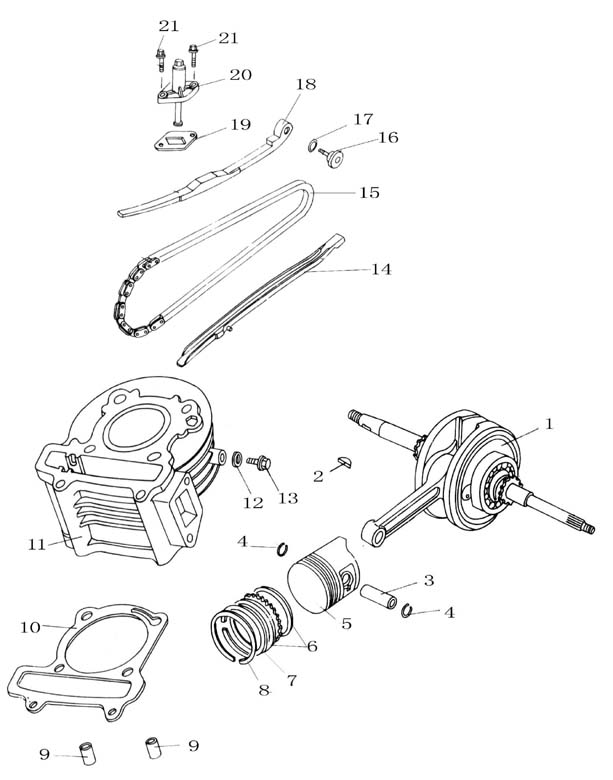

CYLINDER, CRANKSHAFT, PISTON ASSEMBLY


Num.Man. SKUItem NameChineseQtyDetails
1 139QMB-045-000 CRANKSHAFT COMP 0 FSI Part Links
2 139QMB-046-000 KEY, WOODRUFF 0 FSI Part Links
3 139QMB-047-000 PIN PISTON 0 FSI Part Links
4 139QMB-048-000 CLIP PISTON PIN 0 FSI Part Links
5 139QMB-049-000 PISTON 0 FSI Part Links
6 139QMB-050-000 SCRAPER RING COMP 3 ring s 0 FSI Part Links
7 139QMB-051-000 PISTON RING II 3 ring set 0 FSI Part Links
8 139QMB-052-000 PISTON I 3 ring set 0 FSI Part Links
9 139QMB-053-000 PIN, DOWL 8×14 0 FSI Part Links
10 139QMB-054-000 GASKET CYLINDER BODY 0 FSI Part Links
11 139QMB-055-000 CYLINDER BODY COMP 0 FSI Part Links
12 139QMB-056-000 WASHER 6×12 0 FSI Part Links
13 139QMB-057-000 BOLT M6×12 0 FSI Part Links
14 139QMB-058-000 GUAID, CHAIN 0 FSI Part Links
15 139QMB-059-000 INNER CHAIN CAMSHAFT 0 FSI Part Links
16 139QMB-060-000 BOLT TENSION LEVER 0 FSI Part Links
17 139QMB-061-000 O-RING 15.5×1.5 0 FSI Part Links
18 139QMB-062-000 TENSION LEVER CHAIN 0 FSI Part Links
19 139QMB-063-001 TENSONER 0 FSI Part Links
20 139QMB-063-000 GASKET TENSIONER 0 FSI Part Links
21 139QMB-064-000 BOLT M6×16 0 FSI Part Links
