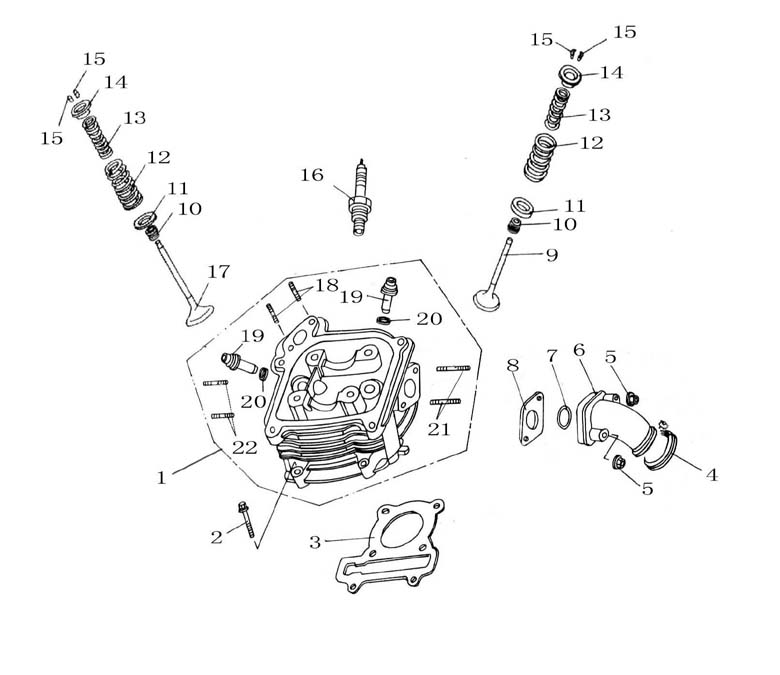

CYLINDER HEAD ASSEMBLY


Num.Man. SKUItem NameQtyDetails
1 139QMB-011-000 CYLINDER HEAD 0 FSI Part Links
2 139QMB-012-000 BOLT M6×85 0 FSI Part Links
3 139QMB-013-000 GASKET, CYLINDER COVER 0 FSI Part Links
4 139QMB-014-000 CLIP 0 FSI Part Links
5 139QMB-015-000 NUT M6 0 FSI Part Links
6 139QMB-016-000 INTAKE MANIFOLD 0 FSI Part Links
7 139QMB-017-000 O-RING 20.6×1.9 0 FSI Part Links
8 139QMB-018-000 INSULATOR, CARBURETOR 0 FSI Part Links
9 139QMB-019-000 VAVLE, INTAKE 0 FSI Part Links
10 152QMI-093-000 OIL SEAL VAVLE0 FSI Part Links
11 152QMI-094-000 WASHER 16×230 FSI Part Links
12 139QMB-020-000 OUTER SPRING VAVLE0 FSI Part Links
13 139QMB-021-000 INNER SPRING VAVLE0 FSI Part Links
14 152QMI-097-000 SEAT, VAVLE SPRING0 FSI Part Links
15 152QMI-098-000 COTTERVAVLE0 FSI Part Links
16 152QMI-099-000 SPARKPLUG0 FSI Part Links
17 139QMB-022-000 VAVLEEX0 FSI Part Links
18 139QMB-023-000 STUD GM-M6×160 FSI Part Links
19 139QMB-024-000 GUIDE, VALVE0 FSI Part Links
20 139QMB-025-000 O-RING0 FSI Part Links
21 139QMB-026-000 STUD GM-M6×320 FSI Part Links
22 139QMB-027-000 STUD GM-M6×630 FSI Part Links
