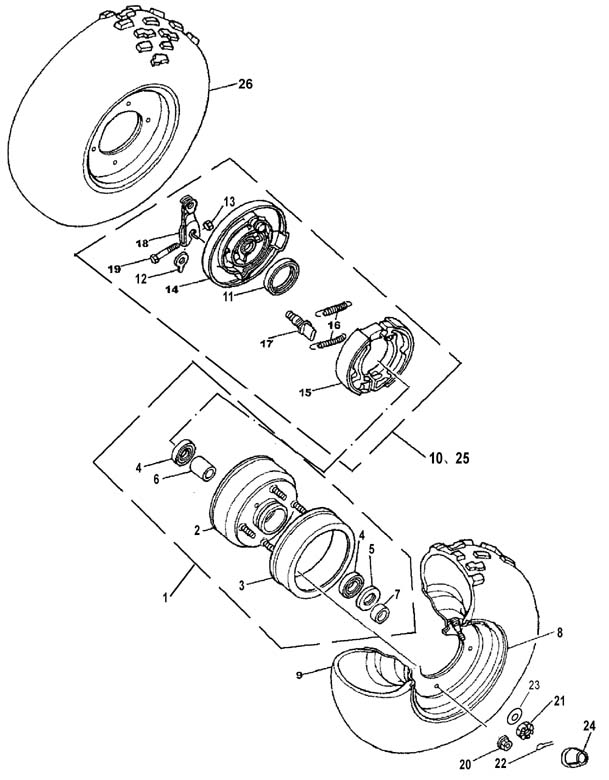

FRONT WHEEL.
前轮


Num.Man. SKUItem NameChineseQtyDetails
1 SSM00(3)170200 FR. Brake hub assy.前制动器轮毂总成 2 FSI Part Links
2 SSM00(3)170201 FR. Brake hub前制动器轮毂 2 FSI Part Links
3 SSM00(3)170202 Brake hub rubber前制动器轮毂胶套 2 FSI Part Links
4 SSM00(3)170203 Bearing前制动器轮毂轴承 4 FSI Part Links
5 SSM00(3)170204 Oil seal前制动器轮毂油封 2 FSI Part Links
6 SSM00(3)170205 Inner tube前制动器轮毂内衬管 2 FSI Part Links
7 SSM00(3)331001 Bush前制动器轮毂衬套 2 FSI Part Links
8 SSM00(3)170100 FR. Rim前轮圈 2 FSI Part Links
9 SSM00(3)170001 FR. tyre前轮胎 2 FSI Part Links
10 SSM00(3)331010 FR. Brake assy.(L.)前制动器总成(左) 1 FSI Part Links
11 SSM00(3)331011 Oil seal, brake前制动器油封 2 FSI Part Links
12 SSM00(3)331012 Plate, indicator前制动拐臂定位板 2 FSI Part Links
13 SSM00(3)331013 Nut前制动拐臂固定螺母 2 FSI Part Links
14 SSM00(3)331014 Body of brake前制动器座 2 FSI Part Links
15 SSM00(3)330201 Brake shoe assy.前制动蹄块 4 FSI Part Links
16 SSM00(3)330202 Spring , brake shoe前制动蹄块弹簧 4 FSI Part Links
17 SSM00(3)330203 Camshaft, brake前制动凸轮轴 2 FSI Part Links
18 SSM00(3)330204 Brake lever前制动拐臂 2 FSI Part Links
19 SSM00(3)330205 Bolt前制动拐臂固定螺栓 2 FSI Part Links
20 GB6177 Nut M8前制动器轮毂固定螺母 8 FSI Part Links
21 GB9459 Nut M14螺母M14 2 FSI Part Links
22 GB91 Pin φ (phi) 3x40开口销φ3×40 2 FSI Part Links
23 SSM00(3)170206 Washer大平垫 2 FSI Part Links
24 SSM00(3)790070 Dust rubber cover前轮毂防尘胶套 2 FSI Part Links
25 SSM00(3)331020 FR. Brake assy.(R.)前制动器总成(右) 1 FSI Part Links
26 SSM00(3)170000 Front wheel assy.前轮总成 2 FSI Part Links
