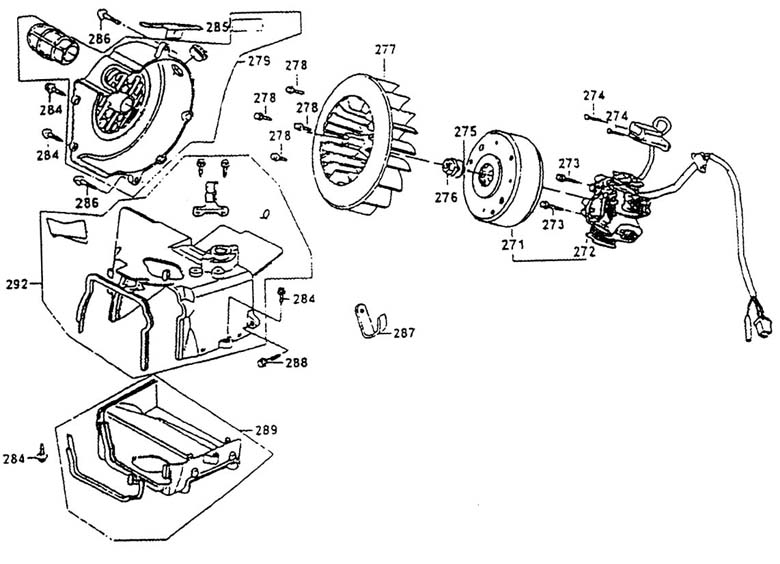

FAN COVER .GENERATOR
风扇盖.发电机


Num.Man. SKUItem NameChineseQtyDetails
271 10311100-00GY6-0090M1 Fly wheel comp(T.C)飞轮盖 1 FSI Part Links
271 10311100-00GY6-009000 Fly wheel comp(S.L)飞轮盖 1 FSI Part Links
272 10311200-00GY6-009000 Stator comp(S.L)转子线圈 1 FSI Part Links
272 10311200-00GY6-0090M1 Stator comp(T.C)转子线圈 1 FSI Part Links
273 10960010-06020-000008 Bolt flange SH 6x20螺丝6×20 1 FSI Part Links
274 10921010-05012-00000H Bolt HEX 5x12螺丝5×12 2 FSI Part Links
275 10904400-00166-000000 Washer 12MM垫圈12MM 1 FSI Part Links
276 10940010-12200-00000S Nut HEX 12MM螺帽12MM 1 FSI Part Links
277 10195100-00GY6-00900 Fan comp cooling冷却风扇 3 FSI Part Links
278 10960010-06018-000008 Bolt flange SH 6x18螺丝6×18 4 FSI Part Links
279 101961A0-00GY6-009010 Cover assy fan风扇盖 1 FSI Part Links
284 10939040-35380-000000 Screw taping 5x16螺钉5×16 4 FSI Part Links
285 10196130-00GY6-009000 Clamper starter motor cord起动马达导线夹 1 FSI Part Links
286 10960010-06025-000008 Bolt flange SH 6x25螺丝6×25 1 FSI Part Links
287 1011385-00GY6-009000 Clamper starter motor tube溢油管夹 1 FSI Part Links
288 1096001-06025-000008 Bolt flange SH 6x25螺丝6×25 1 FSI Part Links
289 101962A-00GY6-009020 Shroud assy A罩盖A 1 FSI Part Links
292 101963A-00GY6-009010 Shroud assy B罩盖B 1 FSI Part Links
