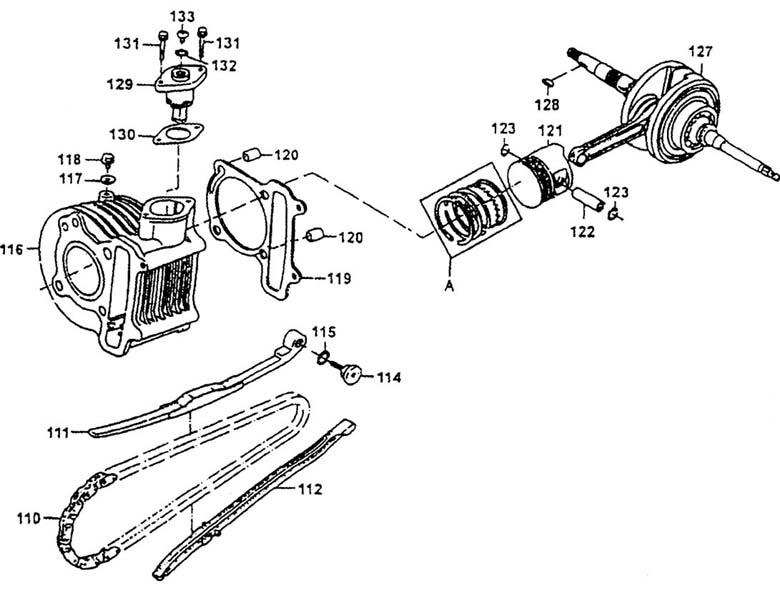

CYLINDER .CRANDCASE.PISTON
汽缸.曲轴.活塞


Num.Man. SKUItem NameChineseQtyDetails
110 101440100GY6-009020 Chain cam凸轮轴内链条 1 FSI Part Links
111 10145100-00GY6-009010 Tensioner cam chain内链条拉车杆 1 FSI Part Links
112 10146100-00GY6-009000 Guide comp cam chain链条导件 1 FSI Part Links
114 10145310-00GR0-000000 Pivot cam chain tensioner拉力杆螺丝 1 FSI Part Links
115 10913010-00GR0-000030 O-ring 15.5x1.5O环15.5×1.5 1 FSI Part Links
116 10121000-00GY6-009010 Cylinder comp汽缸 1 FSI Part Links
117 10904610-00MF2-00710 Washer sealing 6.5MM密封垫圈 1 FSI Part Links
118 10957010-06012-000008 Bolt flange 6x12螺丝6×12 1 FSI Part Links
119 10121910-00GY6-009010 Gasket cylinder A汽缸垫片 1 FSI Part Links
120 10943010-10160-000000 Pin dowel 10x16定位销10×16 2 FSI Part Links
121 10131010-00GY6-009400 Piston活塞 1 FSI Part Links
122 10131110-00384-000010 Pin piston活塞销 1 FSI Part Links
123 10946010-15000-000000 Clip piston 15MM活塞销环夹 2 FSI Part Links
127 10130000-00GY6-009200 Shaft comp crank曲轴 1 FSI Part Links
128 10907010-HB6-0100M1 Key woodruff 25x14x4固定键25×14×4 1 FSI Part Links
129 10145200-00GY6-009010 Lifter assy tensioner内链条调整器 1 FSI Part Links
130 10145230-00GY6-009000 Gasket tensioner lifter A内链条调整器垫片 1 FSI Part Links
131 10900010-00GHB-006600 Bolt flange SHF 6x22螺丝6×22 2 FSI Part Links
132 10913060-00105-006900 O-ring 1.5x9.5O环1.5×9.5 1 FSI Part Links
133 10900050-00KW1-009000 Screw pan 6x6螺丝6×6 1 FSI Part Links
A 10130110-00GY6-009000 Ring set piston活塞环组 1 FSI Part Links
