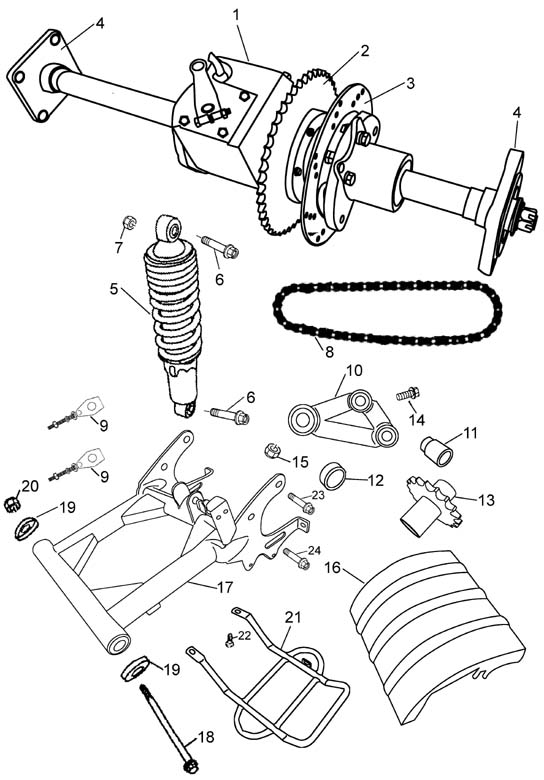

REAR FORK & SHOCK ABSORBER AND SHAFT


Num.Man. SKUItem NameQtyDetails
1 SSM00(3)222000 Rear driving system1 FSI Part Links
2 SSM00(3)222006 Sprocket1 FSI Part Links
3 SSM00(3)333001 Brake disc1 FSI Part Links
4 SSM00(3)222003 Joint base, Rear wheel2 FSI Part Links
5 SSM00(3)158000 Rear shock absorber1 FSI Part Links
6 GB5787 Bolt M10x552 FSI Part Links
7 GB6187 Nut M103 FSI Part Links
8 SSM00(3)197000 Chain1 FSI Part Links
9 SSM00(3)197001 Chain adjuster2 FSI Part Links
10 SSM00(3)050011 Output shaft bracket1 FSI Part Links
11 SSM00(3)050012 IN.tube, engine sprocket1 FSI Part Links
12 SSM00(3)050013 EX.tube, engine sprocket1 FSI Part Links
13 SSM00(3)050010 Engine sprocket1 FSI Part Links
14 GB5787 Bolt M10x502 FSI Part Links
15 GB6187 Nut M161 FSI Part Links
16 SSM00(3)611002 Safety cover of rear shaft1 FSI Part Links
17 SSM00(3)161000 Rear fork1 FSI Part Links
18 SSM00(3)191003 Axle1 FSI Part Links
19 SSM00(3)161001 Dust cover2 FSI Part Links
20 GB6187 Nut M141 FSI Part Links
21 SSM00(3)611001 Bracket1 FSI Part Links
22 GB5787 Bolt M8x164 FSI Part Links
23 GB5787 Bolt M12x252 FSI Part Links
24 GB5787 Bolt M12x252 FSI Part Links
