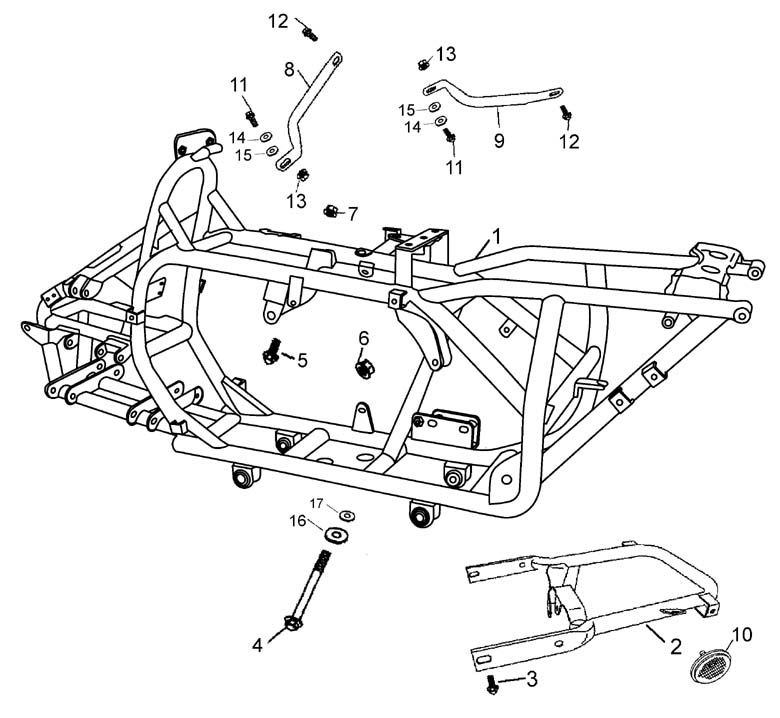

FRAME
车架


Num.Man. SKUItem NameChineseQtyDetails
1 SSM00(3)111000 Frame body车架 1 FSI Part Links
2 SSM00(3)111001 Rear part, frame车架尾段 1 FSI Part Links
3 GB5787 Bolt M8x30螺栓M8×30 4 FSI Part Links
4 GB5787 Bolt M10x195螺栓M10×195 1 FSI Part Links
5 GB5787 Bolt M8x35螺栓M8×35 2 FSI Part Links
6 GB6170 Nut M10螺母M10 1 FSI Part Links
7 GB6177 Nut M8螺母M8 2 FSI Part Links
8 SSM00(3)712001 Upper bracket, front fender, R.前车体右上支架 1 FSI Part Links
9 SSM00(3)712002 Upper bracket, front fender, L.前车体左上支架 1 FSI Part Links
10 SSM00(3)646001 Reflector, side后侧反射器 2 FSI Part Links
11 GB947 Screw M6x20十字大扁头螺钉M6×20 2 FSI Part Links
12 GB5787 Bolt M6x16螺栓M6×16 2 FSI Part Links
13 GB6177 Nut M6螺母M6 2 FSI Part Links
14 GB97 Washer 6平垫6 2 FSI Part Links
15 SSM00(3)780040 Rubber washerφ20胶平垫 2 FSI Part Links
16 GB96 Washer 10平垫10 1 FSI Part Links
17 GB93 Spring washer 10弹垫10 1 FSI Part Links
