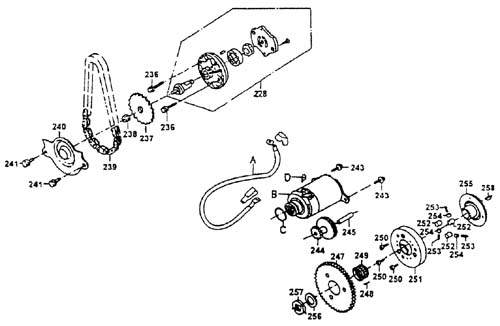

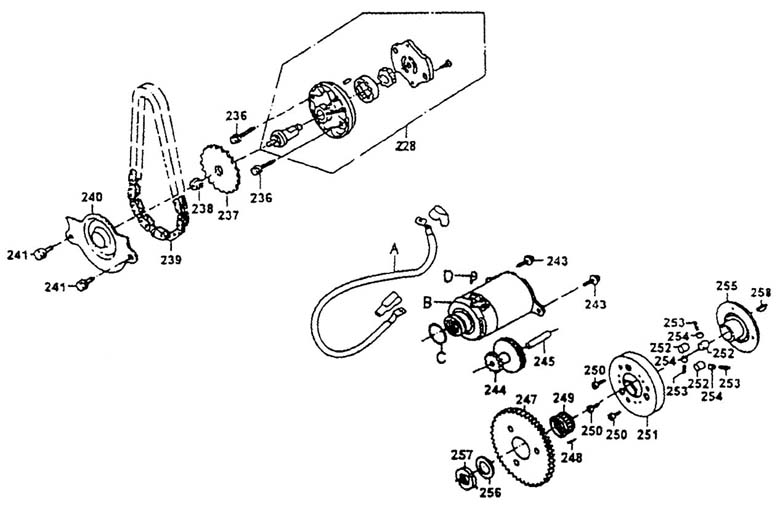

STARTING MOTOR.OIL PUMP
起动马达.机油泵


Num.Man. SKUItem NameChineseQtyDetails
228 10151000-00GY6-009010 Pump assy oil机油泵浦组 1 FSI Part Links
236 10901010-00440-000000 Screw 6x30螺丝6×30 2 FSI Part Links
237 10151330-00GY6-009000 Gear oil pump driven机油泵驱动齿轮 1 FSI Part Links
238 10940500-06080-000000 Nut flange特殊螺帽 1 FSI Part Links
239 10151410-00GY6-009020 Chain oil pump机油泵驱动链条 1 FSI Part Links
240 101571100-00GY6-009000 SEP arater oil机油分隔板 1 FSI Part Links
241 10960010-06012-000008 Bolt flange SH螺丝 2 FSI Part Links
243 10960010-06016-000008 Bolt flange SH螺丝 2 FSI Part Links
244 10281010-00GY6-002000 Gear starter reduction起动减速齿轮 1 FSI Part Links
245 10281020-00GY6-000900 Shaft starter reduction gear动减速齿轮轴 1 FSI Part Links
247 10281100-00GY6-002000 gear comp starting clutch起动齿轮 1 FSI Part Links
248 10907010-00GY6-009600 Pin dowel 6x10定位销6×10 1 FSI Part Links
249 10911040-00GY6-009010 Bearing needle 28x32x17滚镇轴承28×32×17 1 FSI Part Links
250 10966000-008010-000010 Socket bolt 8x10内六角螺丝8×10 3 FSI Part Links
251 10281200-00GY6-0009600 Outer comp starting clutch离合器外套 1 FSI Part Links
252 10911010-00179-007100 Roller 10x10滚子10×10 3 FSI Part Links
253 10281250-00426-000000 Spring roller starter clutch离合器滚子弹簧 3 FSI Part Links
254 10281260-00323-009000 Cap starting roller spring滚子弹簧盖 2 FSI Part Links
255 10281250-00GY6-009600 Flange starting clutch起动离合器凸缘 1 FSI Part Links
256 10904030-00GY6-009000 Washer thrust 22.2x31x2.5华司22.2×31×2.5 1 FSI Part Links
257 10902010-00GY6-009000 Nut lock 22MM锁定螺帽22MM 1 FSI Part Links
258 10907010-0HB6-000100 Key woodruff 25x14x4固定键25×14×4 1 FSI Part Links
A 10324100-0GY6-009010 Cable start motor起动马达配线 1 FSI Part Links
B 10312100-00GY6-002000 Motor nuit start起动马达组 1 FSI Part Links
C 10913090?0425?00030 O-ring 24.4x3.1O环24.4×3.1 1 FSI Part Links
D 10919810-00KN7-006700 Screw 5x8螺丝5×8 1 FSI Part Links
