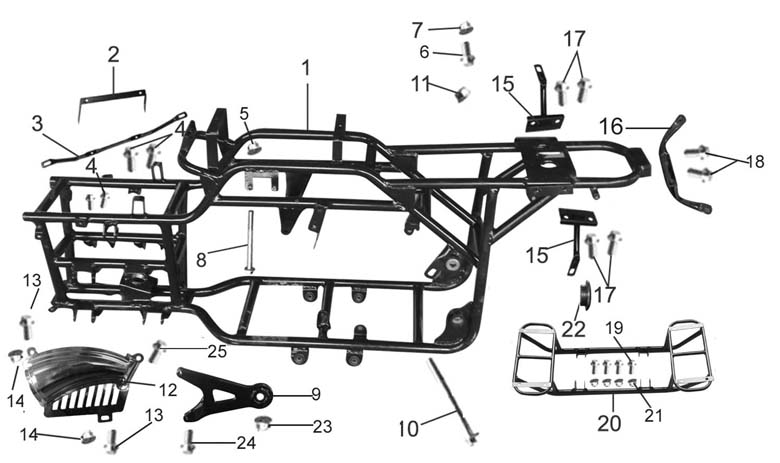

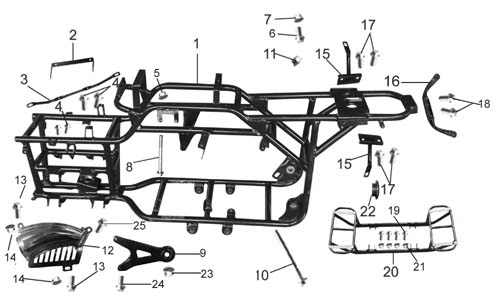

Frame
车架


Num.Man. SKUItem NameChineseQtyDetails
1 FTP111000 Frame车架 1 FSI Part Links
2 FTP111001 Front rack bracket前货架支架 1 FSI Part Links
3 FTP111002 Front rack bracket前货架支架 1 FSI Part Links
4 GB5787 Screw M6X16前货架支架安装螺栓M6X16 4 FSI Part Links
5 GB6187 Nut M8螺母M8 1 FSI Part Links
6 GB5787 Bolt M8X40发动机悬挂螺栓M8X40 1 FSI Part Links
7 GB6170 Nut M8螺母M8 1 FSI Part Links
8 GB5787 Bolt M10X1.25X120发动机悬挂螺栓M10X1.25X120 1 FSI Part Links
9 FTP111003 Output a stalk support输出轴支架 1 FSI Part Links
10 FTP111004 Axle平叉轴 1 FSI Part Links
11 FTP111005 Nut M14X1.25平叉轴螺母M14X1.25 1 FSI Part Links
12 FTP111006 Decorating plate护脚装饰板 1 FSI Part Links
13 GB5787 Bolt M6X16防烫块螺栓 2 FSI Part Links
14 GB6187 Nut M6螺母 2 FSI Part Links
15 FTP111007 Position bracket, RR.后车体支架 2 FSI Part Links
16 FTP111008 Bracket for rear rack后货架支架 1 FSI Part Links
17 GB5787 Bolt M8X25后车体支架字装螺栓M8X25 4 FSI Part Links
18 GB5787 Bolt M8X20后货架支承安装螺栓M8X20 2 FSI Part Links
19 GB5787 Bolt M10X1.25X60脚踏支架螺栓M10X1.25X60 4 FSI Part Links
20 FTP111009 Footrest frame左右脚踏支架 1 FSI Part Links
21 GB6187 Nut M10X1.25左右脚踏支架安装螺母M8X20 4 FSI Part Links
22 FTP111010 Cover for axle RL.左右平叉轴防尘盖 2 FSI Part Links
23 GB6187 Nut M16X1.5输出支架螺母M16X1.5 1 FSI Part Links
24 GB5787 Bolt M8X30输出支架螺栓M8X30 1 FSI Part Links
25 GB5787 Bolt M8X40输出支架与防烫块螺栓M8X40 1 FSI Part Links
