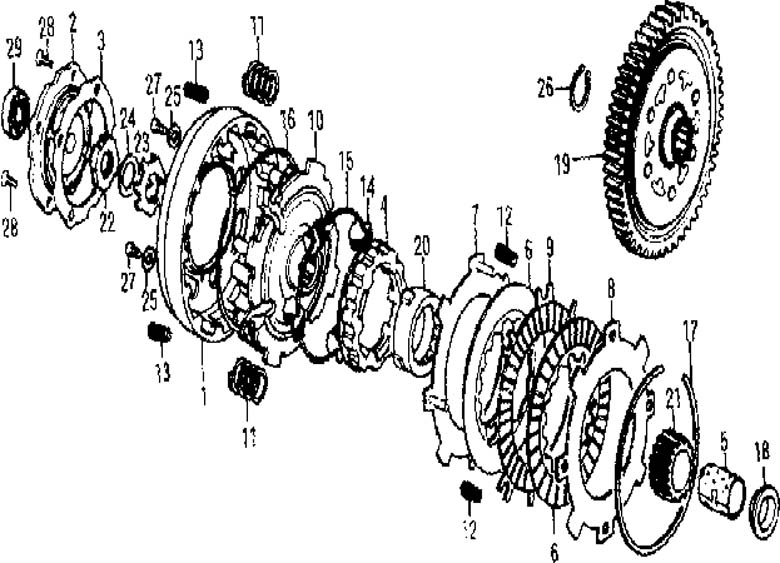

CLUTCH


Num.Man. SKUItem NameQtyDetails
1 C100.21207 Clutch outer cover1 FSI Part Links
2 100.21015 Clutch end cover1 FSI Part Links
3 100.21016 Airproof mat1 FSI Part Links
4 C100.21208 Bush clutch1 FSI Part Links
5 100.13002 Shaft sheath1 FSI Part Links
6 C100.21203 Frication piece A2 FSI Part Links
7 C100.21201 Press plate A1 FSI Part Links
8 C100.21209 Press plate B1 FSI Part Links
9 C100.21202 Frication piece B1 FSI Part Links
10 C100.21210 Middle gear, clutch1 FSI Part Links
11 C100.21205 Spring4 FSI Part Links
12 C100.21211 Spring 5x104 FSI Part Links
13 C100.21212 Shock spring4 FSI Part Links
14 C100.21213 Starting pawl28 FSI Part Links
15 C100.21214 Pawl spring1 FSI Part Links
16 C100.21215 Circlip1 FSI Part Links
17 100.21216 Spring circlip1 FSI Part Links
18 100.21004 Bush 171 FSI Part Links
19 100.21300 Driven gear1 FSI Part Links
20 100.23112 Cover, active gear1 FSI Part Links
21 100.13001 Active gear1 FSI Part Links
22 100.21003 Nut M141 FSI Part Links
23 100.21005 Washer1 FSI Part Links
24 100.21002 Washer1 FSI Part Links
25 GB97 Washer1 FSI Part Links
26 100.24118 Spring circlip1 FSI Part Links
27 GB818 Screw M5x101 FSI Part Links
28 GB819 Screw M5x124 FSI Part Links
29 GB292 Bearing 60001 FSI Part Links
