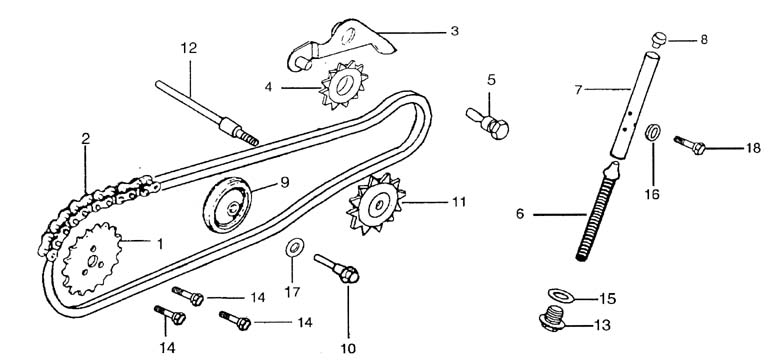

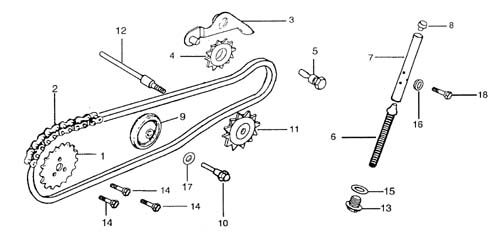

Cam chain/Tensioner
凸轮链条/张紧器


Num.Man. SKUItem NameChineseQtyDetails
1 50Z 14011 Timing driven sprocket正时从动链轮 1 FSI Part Links
2 50Z 14200 Chain, cam套筒滚子链条 1 FSI Part Links
3 50Z 14400 Tension arm comp.链条张紧臂组件 1 FSI Part Links
4 50Z 14405 Tension roller comp.链条张紧滚轮组件 1 FSI Part Links
5 50Z 14407 Pivot cam, chain tensioner链条张紧臂心轴 1 FSI Part Links
6 50Z 14408 Spring, chain tension lever链条张紧杆弹簧 1 FSI Part Links
7 50Z 14400A Chain tension lever assy.链条张紧杆组件 1 FSI Part Links
8 50Z 14409 Tension lever head链条张紧杆头 1 FSI Part Links
9 50Z 14403 Guide roller assy.链条导向滚轮组件 1 FSI Part Links
10 50Z 14404 Pin shaft, guide roller导向滚轮销轴 1 FSI Part Links
11 50Z 15004 Driven sprocket, oil pump油泵传动链轮 1 FSI Part Links
12 50Z 14024 Sprocket shaft, oil pump油泵链轮轴 1 FSI Part Links
13 50Z 14415 Seal bolt M14x1.5密封螺塞M14×1.5 1 FSI Part Links
14 GB/T 16674 Bolt M5x12螺栓M5×12 3 FSI Part Links
15 50Z 14410 Washer 14.2垫圈14.2 1 FSI Part Links
16 GB/T 95 Washer 6垫圈6 1 FSI Part Links
17 50Z 14416 Washer 8垫圈8 1 FSI Part Links
18 GB/T 16674 Bolt M6x18螺栓M6×18 1 FSI Part Links
