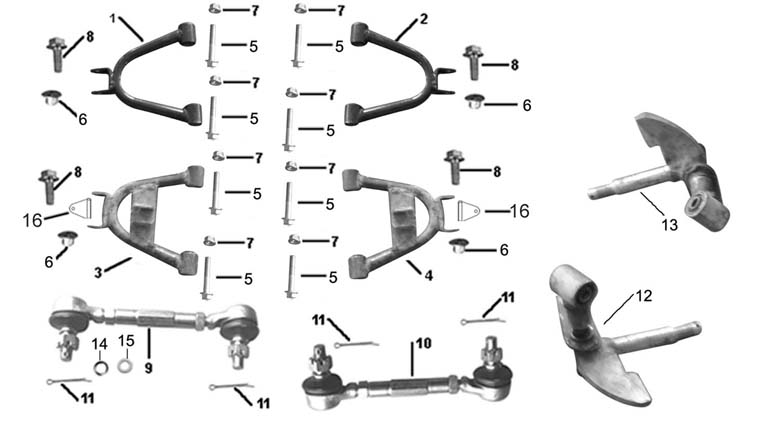

Swing Arm/Tie-rod/Knuckle Pivot


Num.Man. SKUItem NameQtyDetails
1 FTP50(7)120101 L., UP-Swing arm1 FSI Part Links
2 FTP50(7)120102 R., UP-Swing arm1 FSI Part Links
3 FTP50(7)120201 L., DOWN-Swing arm1 FSI Part Links
4 FTP50(7)120202 R., DOWN-Swing arm1 FSI Part Links
5 GB5787 Bolt M8x554 FSI Part Links
6 GB6187 Nut M104 FSI Part Links
7 GB6187 Nut M10 X 1.254 FSI Part Links
8 GB5787 Bolt M10x554 FSI Part Links
9 FTP50(7)316001 Left tie-rod assy.1 FSI Part Links
10 FTP50(7)316002 Right tie-rod assy.1 FSI Part Links
11 GB91 Pin ¦Õ (phi) 2.5x304 FSI Part Links
12 FTP50(7)314000 Left knuckle pivot set1 FSI Part Links
13 FTP50(7)315000 Right knuckle pivot set1 FSI Part Links
14 GB93 Spring 104 FSI Part Links
15 GB97 Washer 104 FSI Part Links
