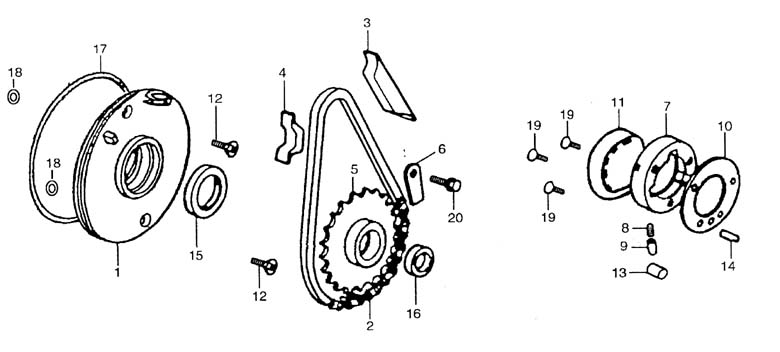

Starting clutch
起动离合器


Num.Man. SKUItem NameChineseQtyDetails
1 50Z 24701 Plate盖板 1 FSI Part Links
2 50Z 24400 Driving chain, starting motor电起动传动链条 1 FSI Part Links
3 50Z 24702 Guide plate链条导板 1 FSI Part Links
4 50Z 24703 Protect plate链条护板 1 FSI Part Links
5 50Z 24700 Driven sprocket set电起动从动链子轮组合 1 FSI Part Links
6 50Z 24704 Location plate定位板 1 FSI Part Links
7 50Z 24501 Starting clutch comp.单向器本体星轮 1 FSI Part Links
8 50Z 24502 Spring弹簧 3 FSI Part Links
9 50Z 24503 Pin spring堵头 3 FSI Part Links
10 50Z 24504 Side plate, starter clutch单向器垫片 1 FSI Part Links
11 50Z 24505 Outer cover, starting clutch外罩 1 FSI Part Links
12 GB/T 819.1 Screw M6x16螺钉M6×16 2 FSI Part Links
13 GB44661 Roller 10x10滚柱10×10 3 FSI Part Links
14 GB119.1 Pin 5x11.8定位销5×11.8 1 FSI Part Links
15 GB119.1 Oil seal 30x42x4.5油封30×42×4.5 1 FSI Part Links
16 50Z 24706 Oil seal 19x30x5油封19×30×5 1 FSI Part Links
17 50Z 24707 O-ring 116.8x2O形密封圈116.8×2 1 FSI Part Links
18 50Z 24708 O-ring 6.5x1.5O形密封圈6.5×1.5 2 FSI Part Links
19 GB/T 819.1 Screw M6x16螺钉M6×16 3 FSI Part Links
20 GB/T 16674 Screw M6x10螺钉M6×10 1 FSI Part Links
