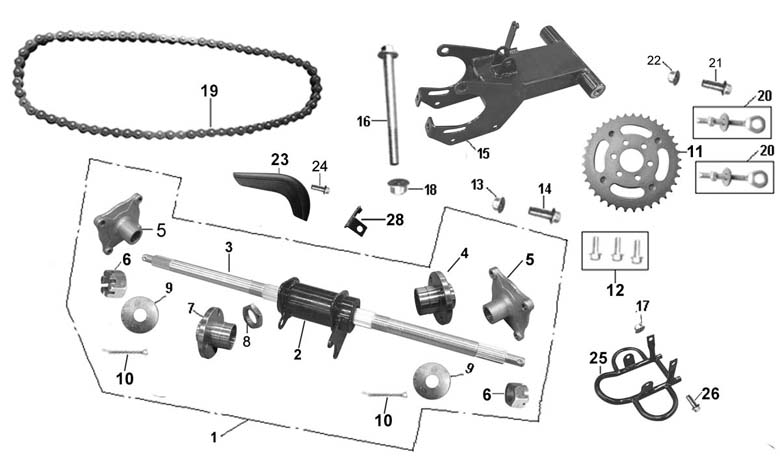

Rear driving system/Fork/Chain


Num.Man. SKUItem NameQtyDetails
1 SSJ0A(6)220000 Rear driving system1 FSI Part Links
2 SSJ0A(6)221100 Rear axle joint base1 FSI Part Links
3 SSJ0A(6)223000 Rear axle1 FSI Part Links
4 SSJ0A(6)333002 Fixing base, disc1 FSI Part Links
5 SSJ0A(6)180004 Fixing base, rear wheel2 FSI Part Links
6 GB9459 Slotted nut M16x1.5(H=17.5)2 FSI Part Links
7 SSJ0A(6)220001 Fixing base, sprocket1 FSI Part Links
8 SSJ0A(6)220004 Nut2 FSI Part Links
9 GB96 Big washer2 FSI Part Links
10 GB91 pin ¦Õ (phi) 3x302 FSI Part Links
11 SSJ0A(6)221110 Sprocket1 FSI Part Links
12 GB5787 Bolt M8x203 FSI Part Links
13 GB6187 Nut M102 FSI Part Links
14 GB5787 Bolt M10x252 FSI Part Links
15 SSJ0A(6)161000 Fork assy.1 FSI Part Links
16 SSJ0A(6)191003 Fork shaft1 FSI Part Links
17 GB6187 Nut M84 FSI Part Links
18 GB6187 Nut M12x1.251 FSI Part Links
19 SSJ0A(6)197000 Chain1 FSI Part Links
20 SSJ0A(6)197001 Chain adjuster2 FSI Part Links
21 GB5787 Bolt M8x252 FSI Part Links
22 GB6187 Nut M82 FSI Part Links
23 SSJ0A(6)425000 Chain cover1 FSI Part Links
24 GB5787 Bolt M6x162 FSI Part Links
25 SSJ0A(6)220002 Bracket of rear driving system1 FSI Part Links
26 GB5787 Bolt M8x204 FSI Part Links
