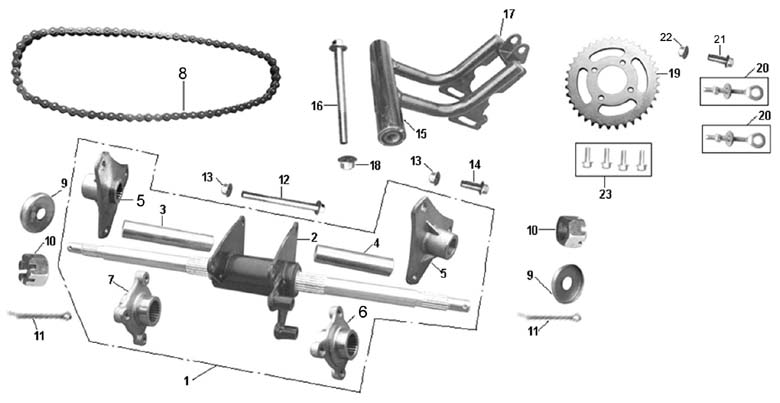

Rear driving system/Fork/Chain


Num.Man. SKUItem NameQtyDetails
1 FTP50(1)220000 Rear driving system1 FSI Part Links
2 FTP50(1)220001 Rear driving1 FSI Part Links
3 FTP50(1)180002 Left tube1 FSI Part Links
4 FTP50(1)180003 Right tube1 FSI Part Links
5 FTP50(1)180004 Fixing base, rear wheel2 FSI Part Links
6 FTP50(1)333002 Fixing base, disc1 FSI Part Links
7 FTP50(1)220002 Fixing base, sprocket1 FSI Part Links
8 FTP50(1)197000 Chain1 FSI Part Links
9 FTP50(1)170005 Big washer2 FSI Part Links
10 GB9459 Slotted nut M142 FSI Part Links
11 GB91 pin ¦Õ (phi) 2x302 FSI Part Links
12 GB5782 Bolt M8x901 FSI Part Links
13 GB6187 Nut M81 FSI Part Links
14 GB5787 Bolt M8x207 FSI Part Links
15 FTP50(1)161000 Fork assy.1 FSI Part Links
16 FTP50(1)191003 Fork shaft1 FSI Part Links
17 FTP50(1)161002 Rubber stopper2 FSI Part Links
18 GB6177 Nut M121 FSI Part Links
19 FTP50(1)220003 Sprocket1 FSI Part Links
20 FTP50(1)197001 Chain adjuster2 FSI Part Links
21 GB5783 Bolt M8x202 FSI Part Links
22 GB6170 Nut M82 FSI Part Links
23 GB5787 Bolt M8x164 FSI Part Links
