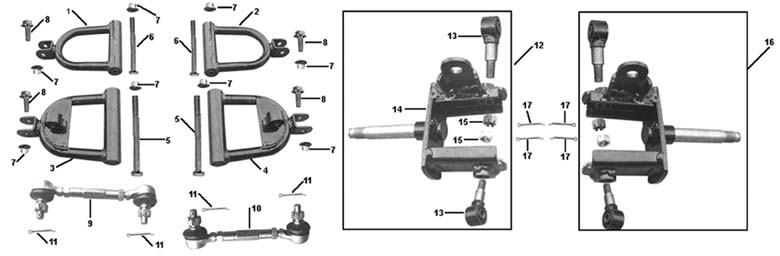

Swing Arm/Tie-rod/Knuckle Pivot


Num.Man. SKUItem NameQtyDetails
1 FTP50(1)120101 L., UP-Swing arm1 FSI Part Links
2 FTP50(1)120102 R., UP-Swing arm1 FSI Part Links
3 FTP50(1)120201 L., DOWN-Swing arm1 FSI Part Links
4 FTP50(1)120202 R., DOWN-Swing arm1 FSI Part Links
5 GB5782 Bolt M8x1402 FSI Part Links
6 GB5782 Bolt M8x1102 FSI Part Links
7 GB6187 Nut M88 FSI Part Links
8 GB5787 Bolt M8x254 FSI Part Links
9 FTP50(1)316001 Left tie-rod assy.1 FSI Part Links
10 FTP50(1)316002 Right tie-rod assy.1 FSI Part Links
11 GB91 Pin ¦Õ (phi) 1.5x204 FSI Part Links
12 FTP50(1)314000 Left knuckle pivot set1 FSI Part Links
13 FTP50(1)314001 Connector, knuckle pivot4 FSI Part Links
14 FTP50(1)314002 Knuckle pivot body2 FSI Part Links
15 GB9459 Slotted nut4 FSI Part Links
16 FTP50(1)315000 Right knuckle pivot set1 FSI Part Links
17 GB91 Pin ¦Õ (phi) 1.5x204 FSI Part Links
